Divers faisceaux additionnels for BMW 3 Series E21 320i (1979)

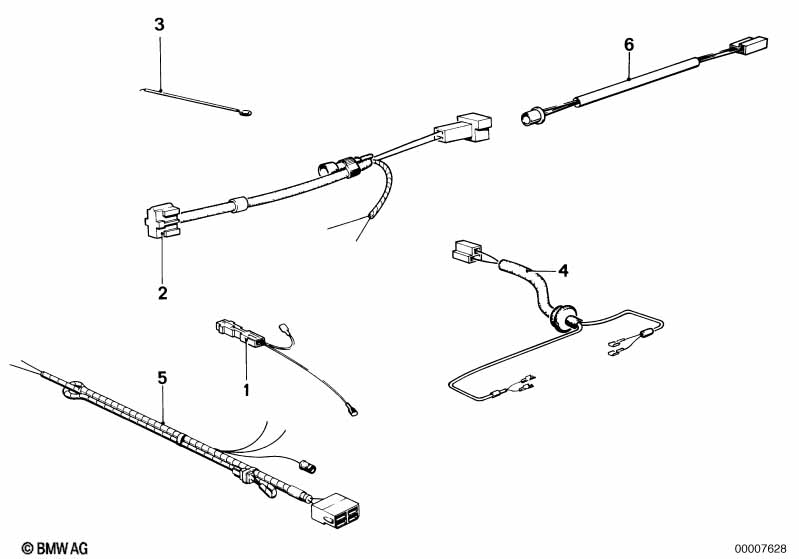

This Divers faisceaux additionnels technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable electrique eclairage boite a gants | 1 | 61121363030 | $6.08 | arrêté | Shop at ECS Tuning | ||||
| 02 | Cable electrique baladeuse | 1 | 61121359815 | $13.73 | arrêté | Shop at ECS Tuning | ||||
| 03 | Cable - de lunette arriere chauffante | 1 | 61121355636 | $2.53 | arrêté | Shop at ECS Tuning | ||||
| 04 | Cable d'eclairage de plaque d'immat. | 1 | 09/1978 | 61121365409 | $20.20 | arrêté | Shop at ECS Tuning | |||
| 05 | Faisceau pour boite a gants | 1 | 09/1979 | 61121369540 | $22.88 | arrêté | Shop at ECS Tuning | |||
| 06 | Faisceau partiel de plaque avant | 1 | 61121367793 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Divers faisceaux additionnels?
- This technical diagram illustrates the Divers faisceaux additionnels within the Electricité du véhicule group for the 3 Series E21 320i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Cable electrique eclairage boite a gants (Part #61121363030).
- Which models use the hardware listed in this Divers faisceaux additionnels?
- The hardware and components featured in the Divers faisceaux additionnels are specific to the 3 Series E21 320i produced during 1979. These technical specifications ensure that parts like the Cable electrique eclairage boite a gants (61121363030) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Divers faisceaux additionnels assembly?
- Each item in the Divers faisceaux additionnels corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Cable electrique eclairage boite a gants by locating its position on the schematic, which then links to the official BMW part number 61121363030 for the Electricité du véhicule section.
