Faisceau pour t o relevable electrique for BMW 7 Series E23 733i (1982)

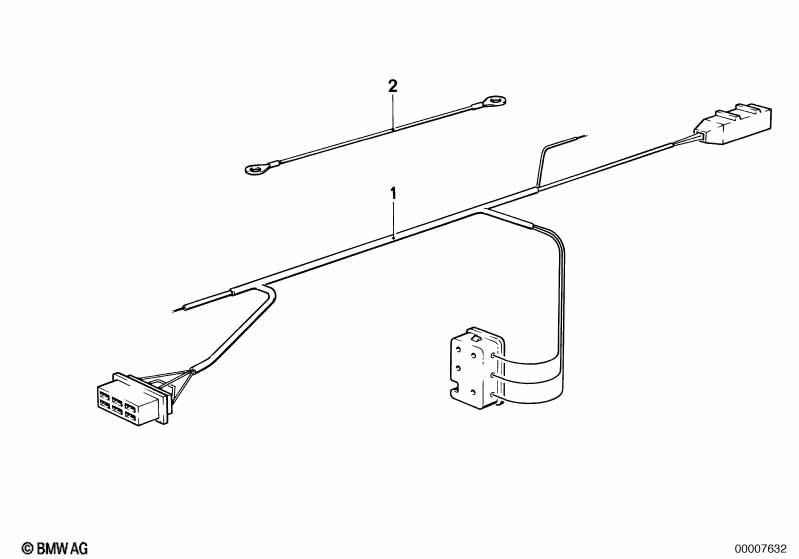

This Faisceau pour t o relevable electrique technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.

Faisceau pour t o relevable electrique
Descriptions Supplément Qté  A partir de   Jusqu'à  Référence pièce Prix Note
01 Faisceau pour t o relevable electrique 1 09/1982 61121372850 $57.47 arrêté Shop at ECS Tuning
02 Cable de masse essieu avant 1 61121364634 arrêté Shop at ECS Tuning
02 Bande masse pour capot moteur 1 61121365922 $13.24 arrêté Shop at ECS Tuning
Note
  • arrêté = la pièce n'est plus produite.

See Also

Frequently Asked Questions

What assembly is shown in the BMW 7 Series E23 733i Faisceau pour t o relevable electrique?
This technical diagram illustrates the Faisceau pour t o relevable electrique within the Electricité du véhicule group for the 7 Series E23 733i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Faisceau pour t o relevable electrique (Part #61121372850).
Which models use the hardware listed in this Faisceau pour t o relevable electrique?
The hardware and components featured in the Faisceau pour t o relevable electrique are specific to the 7 Series E23 733i produced during 1982. These technical specifications ensure that parts like the Faisceau pour t o relevable electrique (61121372850) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Faisceau pour t o relevable electrique assembly?
Each item in the Faisceau pour t o relevable electrique corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Faisceau pour t o relevable electrique by locating its position on the schematic, which then links to the official BMW part number 61121372850 for the Electricité du véhicule section.
