Connecteur de cables-capuchon for BMW 6 Series E24 628CSi

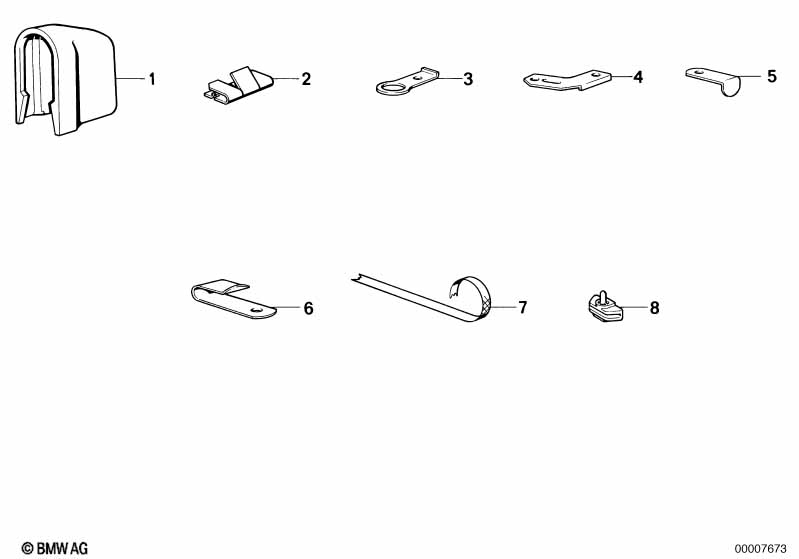

This Connecteur de cables-capuchon technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Capuchon de protection | X | 61131355159 | $1.41 | arrêté | Shop at ECS Tuning | ||||
| 02 | Agrafe | X | 61131356086 | $0.23 | Shop at ECS Tuning | |||||
| 03 | Tole de fixation | X | 61131354070 | $1.13 | Shop at ECS Tuning | |||||
| 04 | Support | X | 61131361979 | arrêté | Shop at ECS Tuning | |||||
| 05 | Support de fiche de diagnostic | X | 12121353322 | arrêté | Shop at ECS Tuning | |||||
| 06 | Collier | X | 11610643018 | arrêté | Shop at ECS Tuning | |||||
| 07 | Attache-câble | X | 61131352477 | $2.19 | arrêté | Shop at ECS Tuning | ||||
| 07 | Attache-câble | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 08 | Fermeture | X | 61131352478 | $0.40 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
