Contacteur-boitiers electroniques for BMW 7 Series E23 733i (1986)

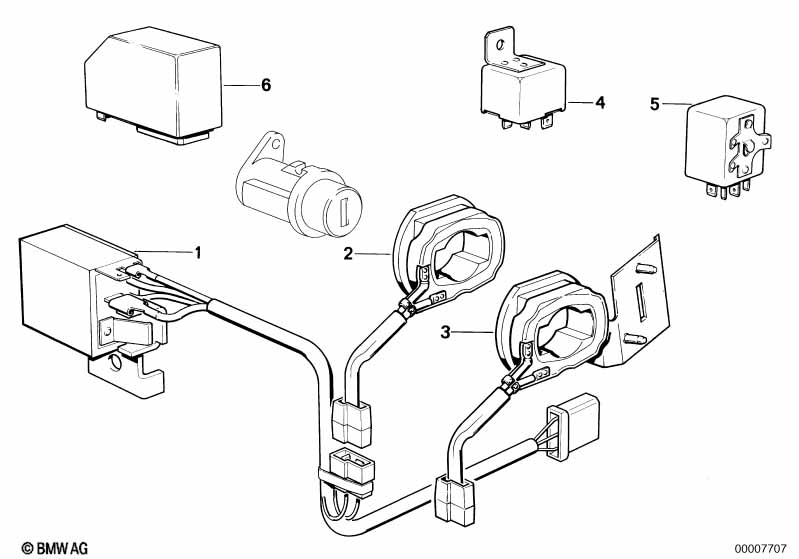

This Contacteur-boitiers electroniques technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Commande de chauffage pour serrure chauf | 1 | 01/1984 | 61311374785 | Shop at ECS Tuning | |||||
| 03 | Resistance chauffante droite | 1 | 01/1984 | 51211374783 | arrêté | Shop at ECS Tuning | ||||
| 04 | Boîtier de commande éclairage intérieur | 1 | 61311373974 | $86.39 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Toit ouvrant à lever |
=Oui |
|||||||||
| 05 | Relais | 1 | 61311362386 | $47.14 | arrêté | Shop at ECS Tuning | ||||
| 06 | Boîtier de commande nettoyage intensif | 1 | 01/1983 | 61311369829 | $235.86 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
