Relais for BMW 5 Series E28 520i (1988)

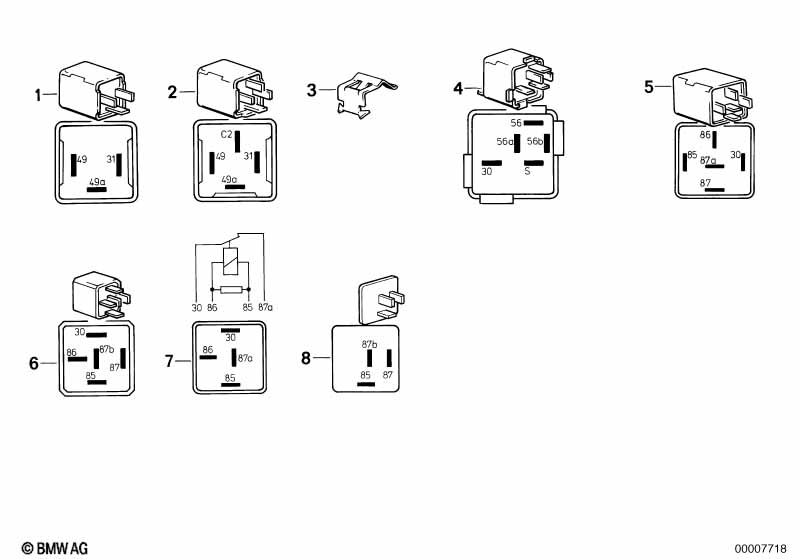

This Relais technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clignotant d'avertisseur | 1 | 61311371909 | Shop at ECS Tuning | ||||||
| Pour véhicules avec Dispositif d'attelage |
=Oui |
|||||||||
| 02 | Clignotant d'avertisseur | 1 | 61311372021 | $48.49 | Shop at ECS Tuning | |||||
| 03 | Agrafe | 1 | 61131366955 | $0.36 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Toit ouvrant à lever |
=Oui |
|||||||||
| 04 | Relais | 1 | 61311362386 | $47.14 | arrêté | Shop at ECS Tuning | ||||
| 05 | Relais inverseur violet signal | 1 | 61361388911 | $13.96 | Shop at ECS Tuning | |||||
| 07 | Relais | 1 | 61311373916 | $23.75 | arrêté | Shop at ECS Tuning | ||||
| 08 | Raccord | 1 | 61311371173 | arrêté | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
