batterie for BMW 3 Series E21 320i (1979)

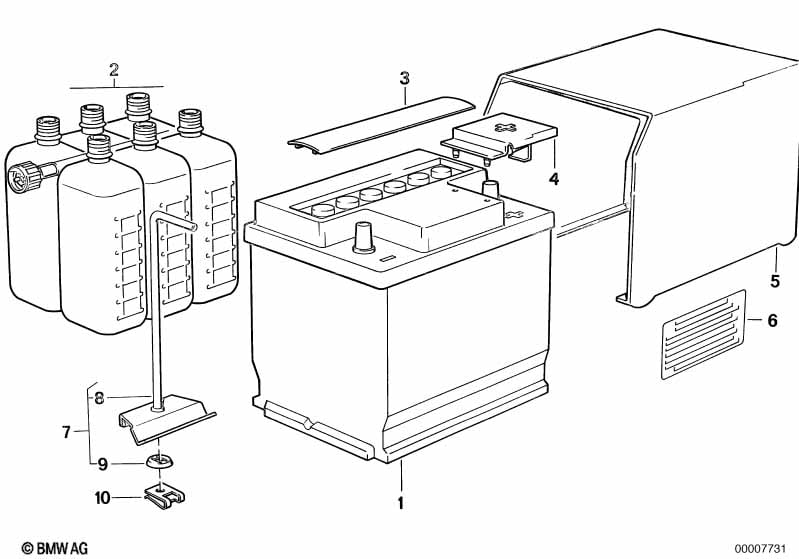

This batterie technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 06 | Etiquette indicatrice batterie | 1 | 51141873247 | $8.03 | arrêté | Shop at ECS Tuning | ||||
| 07 | Rail de fixation | 1 | 61211367635 | $12.64 | arrêté | Shop at ECS Tuning | ||||
| 10 | C-clip ecrou | M6-ZNS3 | 1 | 51127070202 | $1.00 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i batterie?
- This technical diagram illustrates the batterie within the Electricité du véhicule group for the 3 Series E21 320i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Etiquette indicatrice batterie (Part #51141873247).
- Which models use the hardware listed in this batterie?
- The hardware and components featured in the batterie are specific to the 3 Series E21 320i produced during 1979. These technical specifications ensure that parts like the Etiquette indicatrice batterie (51141873247) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the batterie assembly?
- Each item in the batterie corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Etiquette indicatrice batterie by locating its position on the schematic, which then links to the official BMW part number 51141873247 for the Electricité du véhicule section.
