Contacteur-tableau de bord for BMW 3 Series E21 318 (1977)

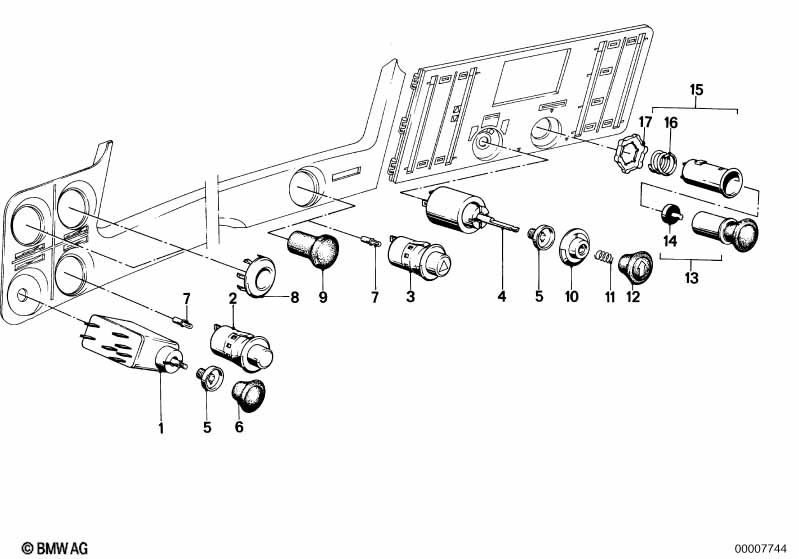

This Contacteur-tableau de bord technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Interrupteur d'eclairage | 1 | 08/1979 | 61311355791 | $145.50 | Shop at ECS Tuning | ||||
| Pour véhicules avec Version Italie |
L814A=Oui |
|||||||||
| 01 | Interrupteur d'eclairage | 1 | 08/1979 | 61311353769 | $153.17 | arrêté | Shop at ECS Tuning | |||
| 02 | Interrupt de lunette arriere chauffante | 1 | 08/1979 | 61311356623 | $49.59 | Shop at ECS Tuning | ||||
| Pour véhicules avec Phares anti-brouillard et Feu-brouillard ar. |
=Oui =Oui |
|||||||||
| 02 | Interrupteur | 1 | 08/1979 | 61311356585 | $88.08 | arrêté | Shop at ECS Tuning | |||
| 03 | Interrupteur de feux de detresse | 1 | 08/1979 | 61311356584 | $39.27 | Shop at ECS Tuning | ||||
| 04 | Interrup.compresseur | 1 | 08/1977 | 61311358827 | $31.59 | Shop at ECS Tuning | ||||
| 05 | Rosace | 2 | 08/1979 | 64118362900 | $1.42 | arrêté | Shop at ECS Tuning | |||
| 06 | Bouton | 1 | 08/1977 | 61311356640 | arrêté | Shop at ECS Tuning | ||||
| 07 | Ampoule | 12V 1,2W | X | 08/1979 | 63217167000 | $3.00 | Shop at ECS Tuning | |||
| 08 | Fermeture dissimule | 2 | 08/1979 | 61311356583 | $1.23 | Shop at ECS Tuning | ||||
| Pour véhicules avec Version Italie |
L814A=Oui |
|||||||||
| 09 | Fermeture dissimule | 1 | 08/1979 | 61311352646 | $1.90 | arrêté | Shop at ECS Tuning | |||
| 10 | Cache | 1 | 08/1977 | 61311356637 | arrêté | Shop at ECS Tuning | ||||
| 11 | Ressort de pression | 1 | 08/1977 | 61311357818 | arrêté | Shop at ECS Tuning | ||||
| 12 | Bouton de reglage thermique | 1 | 08/1977 | 61311356625 | arrêté | Shop at ECS Tuning | ||||
| 13 | Allume-cigares | 1 | 08/1979 | 61341364532 | $18.67 | Shop at ECS Tuning | ||||
| 14 | Filament | 12 VOLT | 1 | 08/1979 | 61348648111 | $5.27 | Shop at ECS Tuning | |||
| 15 | Prise allume-cigares | 1 | 08/1979 | 61341368728 | $48.94 | arrêté | Shop at ECS Tuning | |||
| 16 | Ressort de pression | 1 | 08/1979 | 61341357281 | arrêté | Shop at ECS Tuning | ||||
| 17 | Anneau de fixation | 1 | 08/1979 | 61341357858 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
