Pièces de dispositif de lave-glace for BMW 6 Series E24 628CSi

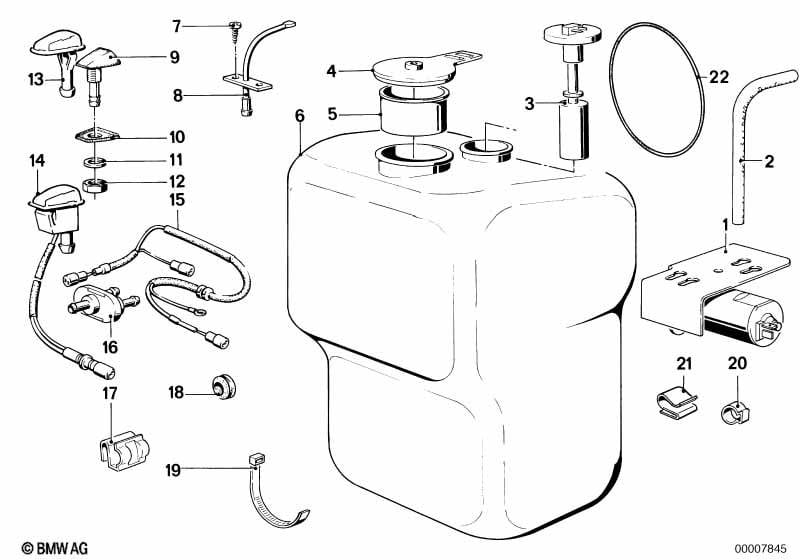

This Pièces de dispositif de lave-glace technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pompe de lave-glace | 1 | 06/1987 | 61661367389 | $67.97 | Shop at ECS Tuning | ||||
| 02 | Conduite en tuyaux flexibles | D= 4,6MM | X | 06/1987 | 61661357388 | $5.05 | Shop at ECS Tuning | |||
| 03 | Commutateur de reglage de niveau | 1 | 06/1987 | 61311366862 | $66.12 | arrêté | Shop at ECS Tuning | |||
| 04 | Couvercle de reservoir de lave-glace | 1 | 06/1987 | 61661364807 | $5.90 | Shop at ECS Tuning | ||||
| 05 | Crépine réservoir à eau | 1 | 06/1987 | 61661365848 | $2.60 | Shop at ECS Tuning | ||||
| 06 | Réservoir | 1 | 06/1987 | 61661361987 | $40.54 | Shop at ECS Tuning | ||||
| 09 | Gicleur | 2 | 04/1977 | 04/1981 | 61661354822 | $6.34 | Shop at ECS Tuning | |||
| 10 | Plaque d'appui | 2 | 04/1977 | 04/1981 | 61661354194 | $0.68 | Shop at ECS Tuning | |||
| 11 | Plaque d'appui | 8,4X16X1,6-ZNNV | 2 | 04/1977 | 04/1981 | 07119907030 | Shop at ECS Tuning | |||
| 12 | Ecrou à six pans | M8-8-ZNS3 | 2 | 04/1977 | 04/1981 | 07119904032 | $0.16 | Shop at ECS Tuning | ||
| 12 | Ecrou à six pans | M8-8-ZNNIV SI | 2 | 04/1977 | 04/1981 | 07119905515 | $0.16 | Shop at ECS Tuning | ||
| 13 | Gicleur | 2 | 04/1981 | 04/1983 | 61661369870 | $6.04 | Shop at ECS Tuning | |||
| 14 | Gicleur chauffant | 2 | 04/1983 | 06/1987 | 61661373429 | $39.16 | Shop at ECS Tuning | |||
| 15 | Faisceau pour lampe comp moteur/gicleur | 1 | 04/1983 | 06/1987 | 61131373874 | $41.81 | arrêté | Shop at ECS Tuning | ||
| 16 | Soupape | 1 | 06/1987 | 61661355299 | $18.57 | Shop at ECS Tuning | ||||
| 17 | Agrafe de fixation de câbles | D=9/B=4 | 2 | 06/1987 | 61131351045 | $0.42 | Shop at ECS Tuning | |||
| 18 | Manchon caoutchouc | 1 | 06/1987 | 61671357226 | $2.73 | arrêté | Shop at ECS Tuning | |||
| 19 | Arret de cable | 53MM | 2 | 06/1987 | 61131353663 | $1.97 | arrêté | Shop at ECS Tuning | ||
| 19 | Arret de cable | 70MM | 2 | 06/1987 | 61131353661 | $1.37 | arrêté | Shop at ECS Tuning | ||
| 20 | Collier de serrage | 8,3-10 | 3 | 06/1987 | 13537795244 | $0.77 | Shop at ECS Tuning | |||
| 20 | Collier de serrage | 8-9.5MM | 3 | 06/1987 | 16131379229 | $0.72 | Shop at ECS Tuning | |||
| 21 | Agrafe de fixation de câbles | D=8/B=1,5 | 2 | 06/1987 | 61131354726 | $0.42 | Shop at ECS Tuning | |||
| 22 | Joint torique | 100X4 | 1 | 06/1987 | 07119905680 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
