Divers faisceaux d.cables additionnels for BMW 1502-2002tii 1802 (1973)

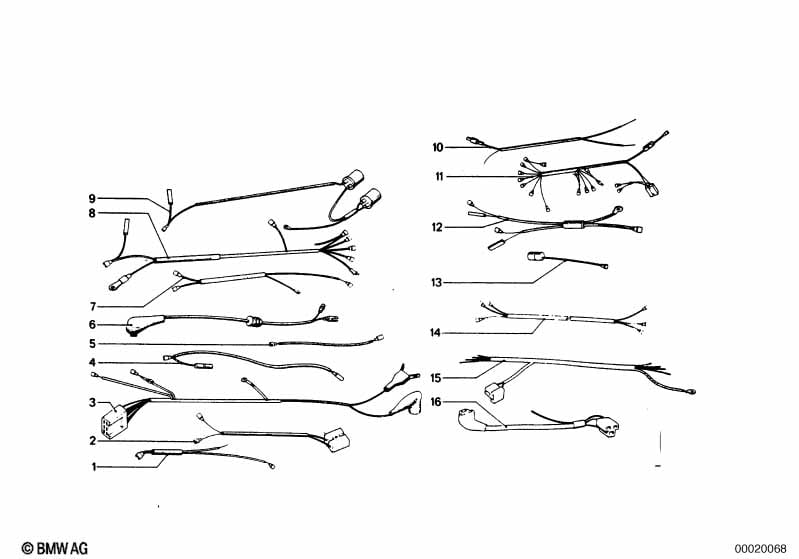

This Divers faisceaux d.cables additionnels technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1802. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 11 | Jeu de câbles | 1 | 03/1971 | 07/1977 | 61121354252 | arrêté | Shop at ECS Tuning | |||
| 15 | Jeu de cables de commande de chauffage | 1 | 64111357093 | $101.28 | arrêté | Shop at ECS Tuning | ||||
| 17 | Cable d'avertisseur | HORN | 1 | 08/1973 | 07/1977 | 61121357744 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1802 Divers faisceaux d.cables additionnels?
- This technical diagram illustrates the Divers faisceaux d.cables additionnels within the Electricité du véhicule group for the 1502-2002tii 1802 produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Jeu de câbles (Part #61121354252).
- Which models use the hardware listed in this Divers faisceaux d.cables additionnels?
- The hardware and components featured in the Divers faisceaux d.cables additionnels are specific to the 1502-2002tii 1802 produced during 1973. These technical specifications ensure that parts like the Jeu de câbles (61121354252) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Divers faisceaux d.cables additionnels assembly?
- Each item in the Divers faisceaux d.cables additionnels corresponds to the numbered list below the illustration. For the 1502-2002tii 1802, you can identify the Jeu de câbles by locating its position on the schematic, which then links to the official BMW part number 61121354252 for the Electricité du véhicule section.
