Lave-projecteurs for BMW 1502-2002tii 2002 (1971)

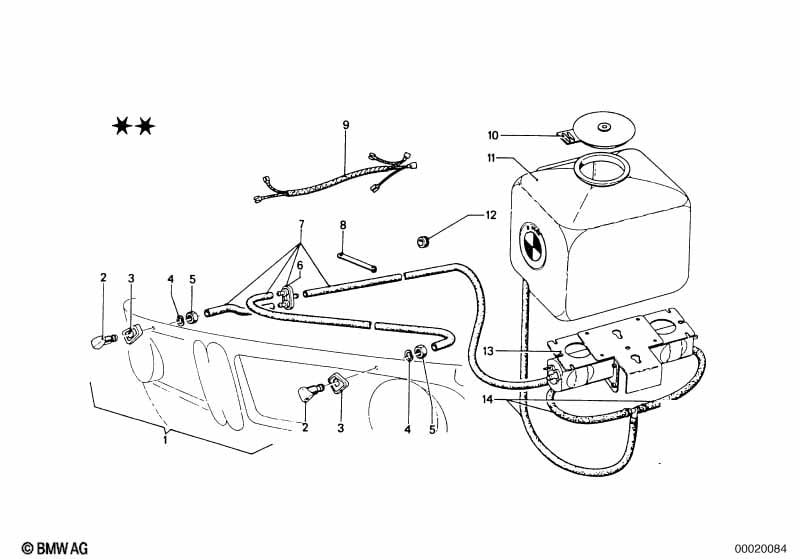

This Lave-projecteurs technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Gicleur | 2 | 61661354822 | $6.34 | Shop at ECS Tuning | |||||
| 03 | Plaque d'appui | 2 | 61661354194 | $0.68 | Shop at ECS Tuning | |||||
| 04 | Plaque d'appui | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 05 | Ecrou à six pans | M8-05-ZNNIV SI | 2 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 06 | Soupape | 1 | 61661355299 | $18.57 | Shop at ECS Tuning | |||||
| 07 | Conduite en tuyaux flexibles | X | 61711355483 | arrêté | Shop at ECS Tuning | |||||
| 08 | Arret de cable | 70MM | 4 | 61131353661 | $1.37 | arrêté | Shop at ECS Tuning | |||
| 09 | Jeu de câbles | 1 | 61121352837 | arrêté | Shop at ECS Tuning | |||||
| 10 | Couvercle de reservoir de lave-glace | 1 | 61661364807 | $5.90 | Shop at ECS Tuning | |||||
| 11 | Réservoir | 1 | 61661350871 | $40.71 | Shop at ECS Tuning | |||||
| 13 | Pompe de lave-glace | 1 | 61671359117 | $170.95 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Lave-projecteurs?
- This technical diagram illustrates the Lave-projecteurs within the Electricité du véhicule group for the 1502-2002tii 2002 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Gicleur (Part #61661354822).
- Which models use the hardware listed in this Lave-projecteurs?
- The hardware and components featured in the Lave-projecteurs are specific to the 1502-2002tii 2002 produced during 1971. These technical specifications ensure that parts like the Gicleur (61661354822) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lave-projecteurs assembly?
- Each item in the Lave-projecteurs corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Gicleur by locating its position on the schematic, which then links to the official BMW part number 61661354822 for the Electricité du véhicule section.
