Interrupteur for BMW 1500-2000CS 1800 (1971)

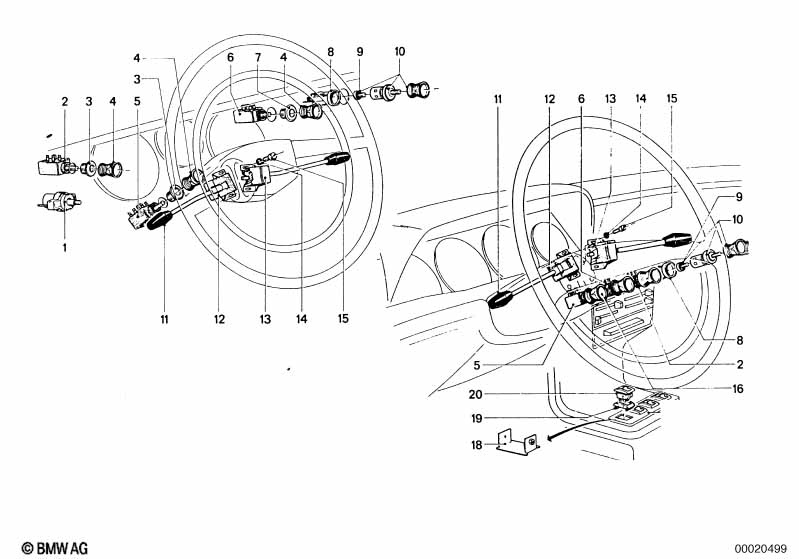

This Interrupteur technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Interrupteur d'essuie-glace | 1 | 61311351197 | arrêté | Shop at ECS Tuning | |||||
| 03 | Rosace | 1 | 61318648120 | arrêté | Shop at ECS Tuning | |||||
| 04 | Bouton | NEUTRAL | 4 | 61318648162 | arrêté | Shop at ECS Tuning | ||||
| 07 | Rosace | 1 | 61319557221 | arrêté | Shop at ECS Tuning | |||||
| 08 | Prise allume-cigares | 1 | 61341351422 | arrêté | Shop at ECS Tuning | |||||
| 11 | Bouton | 2 | 61318648164 | $7.37 | arrêté | Shop at ECS Tuning | ||||
| 12 | Inverseur- code | 1 | 61318648007 | $85.21 | Shop at ECS Tuning | |||||
| 13 | Commutateur de clignotant | 1 | 61318648072 | $239.81 | arrêté | Shop at ECS Tuning | ||||
| 14 | Rondelle elastique | B5 | 4 | 07119932098 | $0.38 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
