Relais for BMW 1500-2000CS 1800 (1971)

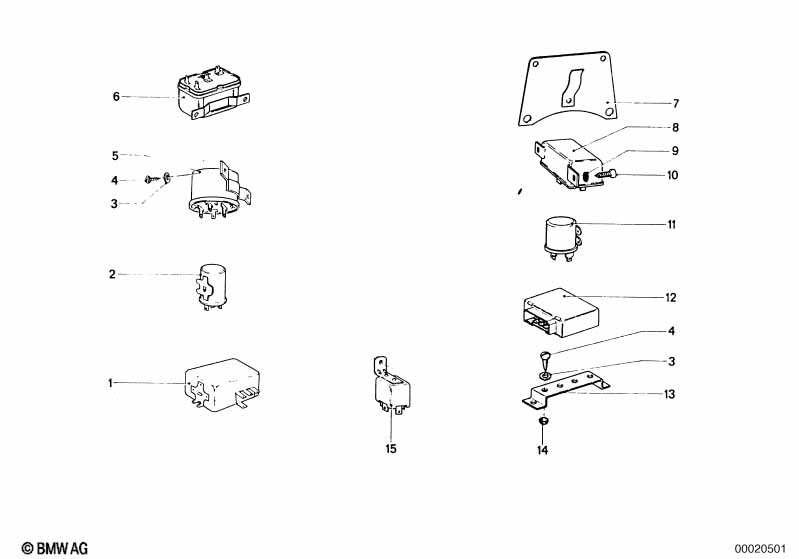

This Relais technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clignotant d'avertisseur | 1 | 07/1968 | 01/1972 | 61311371909 | Shop at ECS Tuning | ||||
| 03 | Jeu vis lent. noyee 20 | ST4,2X13 | 3 | 07509064383 | arrêté | Shop at ECS Tuning | ||||
| 04 | Rondelle dentee | A5,1 | 3 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Relais | 1 | 09/1965 | 01/1972 | 61311351317 | arrêté | Shop at ECS Tuning | |||
| 11 | Relais | 1 | 09/1965 | 01/1972 | 61318650178 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Relais?
- This technical diagram illustrates the Relais within the Electricité du véhicule group for the 1500-2000CS 1800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Clignotant d'avertisseur (Part #61311371909).
- Which models use the hardware listed in this Relais?
- The hardware and components featured in the Relais are specific to the 1500-2000CS 1800 produced during 1971. These technical specifications ensure that parts like the Clignotant d'avertisseur (61311371909) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relais assembly?
- Each item in the Relais corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Clignotant d'avertisseur by locating its position on the schematic, which then links to the official BMW part number 61311371909 for the Electricité du véhicule section.
