Dispositif essuie-glace for BMW 1500-2000CS 1800 (1971)

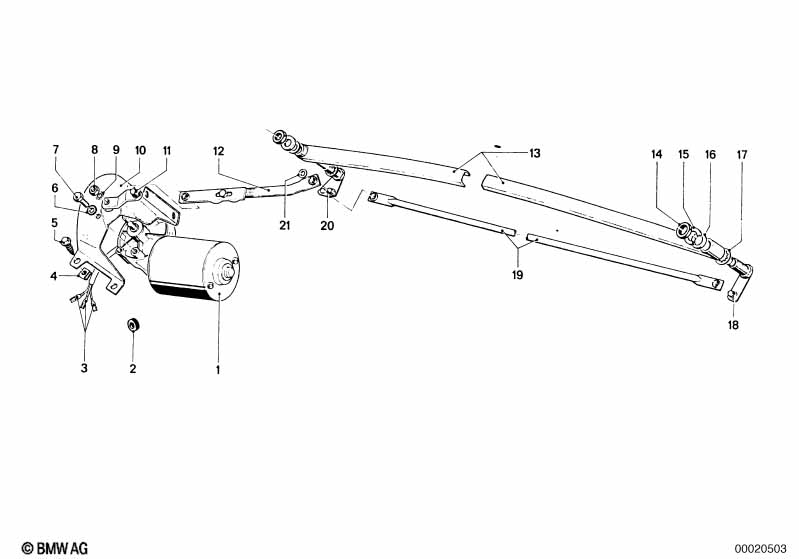

This Dispositif essuie-glace technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moteur d'essuie-glace | 12 VOLT BOSCH | 1 | 01/1966 | 01/1972 | 61618644004 | arrêté | Shop at ECS Tuning | ||
| 01 | Moteur d'essuie-glace | 12 VOLT SWF | 1 | 01/1966 | 01/1972 | 61618644005 | arrêté | Shop at ECS Tuning | ||
| 02 | Manchon caoutchouc | 1 | 16114066530 | $1.70 | Shop at ECS Tuning | |||||
| 03 | Douille | 3 | 61138070220 | $0.42 | arrêté | Shop at ECS Tuning | ||||
| 04 | Ecrou tôlé | ST8-1 | 4 | 07129926117 | $0.24 | arrêté | Shop at ECS Tuning | |||
| 05 | Vis à tôle | B6,5X16 | 4 | 12138530118 | $0.40 | arrêté | Shop at ECS Tuning | |||
| 06 | Rondelle dentee | A6,4 | 3 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Vis six pans | M6X12-8.8-ZNNIV | 3 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 08 | Ecrou à six pans | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Rondelle dentee | J6,4 | 1 | 07119936134 | $0.67 | Shop at ECS Tuning | ||||
| 10 | Support | 1 | 61618644170 | arrêté | Shop at ECS Tuning | |||||
| 11 | Manivelle | SWF | 1 | 61618644105 | arrêté | Shop at ECS Tuning | ||||
| 11 | Manivelle | BOSCH | 1 | 61618644106 | arrêté | Shop at ECS Tuning | ||||
| 12 | Bielle d'entraînement | SWF | 1 | 61618644125 | arrêté | Shop at ECS Tuning | ||||
| 12 | Bielle d'entraînement | BOSCH | 1 | 61618644126 | arrêté | Shop at ECS Tuning | ||||
| 13 | Console | 1 | 61618644174 | arrêté | Shop at ECS Tuning | |||||
| 14 | Ecrou | M16*1 | 2 | 61618644180 | arrêté | Shop at ECS Tuning | ||||
| 15 | Rondelle | 2 | 61611350116 | arrêté | Shop at ECS Tuning | |||||
| 16 | Rondelle | 2 | 61618644160 | arrêté | Shop at ECS Tuning | |||||
| 17 | Rondelle dentee | J16,5 | 2 | 07119936337 | arrêté | Shop at ECS Tuning | ||||
| 18 | Palier de traction | SWF | 1 | 61618644115 | arrêté | Shop at ECS Tuning | ||||
| 18 | Palier de traction | BOSCH | 1 | 61618644116 | $27.06 | arrêté | Shop at ECS Tuning | |||
| 19 | Tringle de liaison | SWF | 1 | 61618644155 | arrêté | Shop at ECS Tuning | ||||
| 19 | Tringle de liaison | BOSCH | 1 | 61618644156 | arrêté | Shop at ECS Tuning | ||||
| 20 | Palier de traction | BOSCH | 1 | 61618644113 | arrêté | Shop at ECS Tuning | ||||
| 20 | Palier de traction | SWF | 1 | 61618644114 | arrêté | Shop at ECS Tuning | ||||
| 21 | Disque de securite | 5-ZNS3 | 2 | 07119904660 | $0.38 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
