Relais injecteurs K6327 for BMW 5 Series E60 525xi

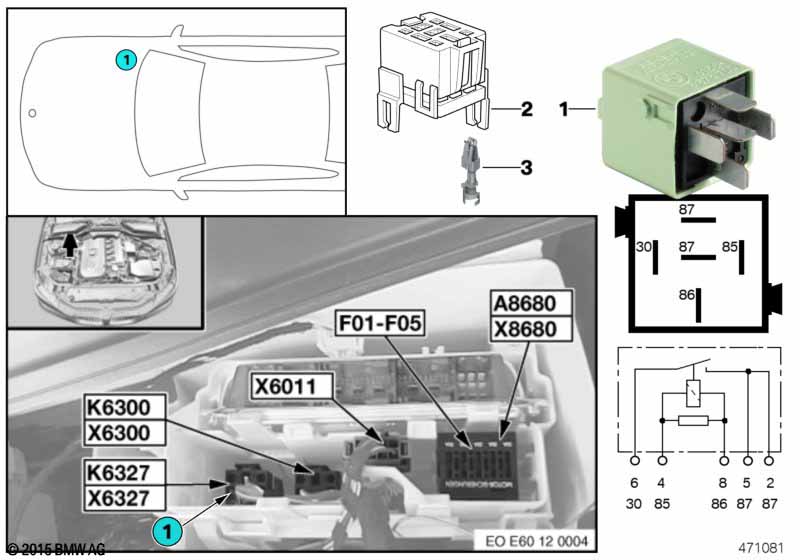

This Relais injecteurs K6327 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525xi. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | La variante de carrosserie montrée sur le graphique n'est qu'un exemple, la variante réelle peut différer. |
|||||||||
| 01 | Relais vert blanc | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 02 | Socle de relais noir blanc | 1 | 61131389111 | $5.43 | Shop at ECS Tuning | |||||
| 03 | Double contact à ressort plat avec câble | 6,0 MM² | X | 61130007271 | $6.97 | Shop at ECS Tuning | ||||
| 03 | Double contact à ressort plat avec câble | 1,0 MM² | X | 61130007437 | $2.35 | Shop at ECS Tuning | ||||
| 03 | Double contact à ressort plat avec câble | 2,5 MM² | X | 61130007438 | $2.75 | Shop at ECS Tuning | ||||
| 03 | Contact double ressort plat | 0,5-1,0 MM²(AG) | X | 61138377730 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Contact double ressort plat | 1,5-2,5 MM²(AG) | X | 61138377732 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Contact double ressort plat | 4,0-6,0 MM²(AG) | X | 61138377734 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525xi Relais injecteurs K6327?
- This technical diagram illustrates the Relais injecteurs K6327 within the Electricité du véhicule group for the 5 Series E60 525xi. It provides a detailed exploded view of the components, identifying key parts such as the Relais vert blanc (Part #61368373700).
- Which models use the hardware listed in this Relais injecteurs K6327?
- The hardware and components featured in the Relais injecteurs K6327 are specific to the 5 Series E60 525xi. These technical specifications ensure that parts like the Relais vert blanc (61368373700) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relais injecteurs K6327 assembly?
- Each item in the Relais injecteurs K6327 corresponds to the numbered list below the illustration. For the 5 Series E60 525xi, you can identify the Relais vert blanc by locating its position on the schematic, which then links to the official BMW part number 61368373700 for the Electricité du véhicule section.
