Pièces de montage batterie for BMW 8 Series G14 Cabriolet M850iX (2025)

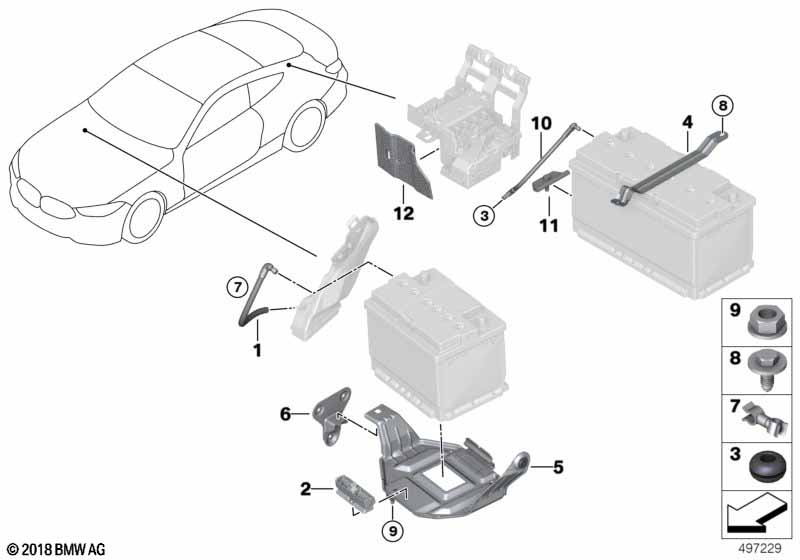

This Pièces de montage batterie technical drawing provides a detailed breakdown of the assembly for the 8 Series G14 Cabriolet M850iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Flexible de dégazage batterie | 1 | 61219311085 | Shop at ECS Tuning | ||||||
| 02 | Rail de blocage batterie | 1 | 61216832664 | Shop at ECS Tuning | ||||||
| 03 | Manchon caoutchouc | 12MM | 1 | 61218801172 | Shop at ECS Tuning | |||||
| 04 | Etrier batterie | 1 | 61218704689 | Shop at ECS Tuning | ||||||
| 05 | Support de batterie additionnelle | 1 | 61219311079 | Shop at ECS Tuning | ||||||
| 06 | appui support de batterie | 1 | 61219311086 | Shop at ECS Tuning | ||||||
| 07 | Support | 1 | 61131365675 | $1.13 | Shop at ECS Tuning | |||||
| 08 | Vis six pans avec rondelle | M8X25 | 1 | 07147075050 | $1.25 | Shop at ECS Tuning | ||||
| 08 | Vis à tête hexagonale combinée | 2 | 61218704702 | Shop at ECS Tuning | ||||||
| 09 | Ecrou six pans avec plaque | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Ecrou à six pans | AM8-8-ZNS3 | 1 | 07129904872 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Flexible de dégazage batterie | 1 | 61219311080 | Shop at ECS Tuning | ||||||
| 11 | Rail de blocage batterie | 1 | 61216832664 | Shop at ECS Tuning | ||||||
| 12 | Jeu de bandes de feutre autocollantes | 1 | 51452353024 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series G14 Cabriolet M850iX Pièces de montage batterie?
- This technical diagram illustrates the Pièces de montage batterie within the Electricité du véhicule group for the 8 Series G14 Cabriolet M850iX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Flexible de dégazage batterie (Part #61219311085).
- Which models use the hardware listed in this Pièces de montage batterie?
- The hardware and components featured in the Pièces de montage batterie are specific to the 8 Series G14 Cabriolet M850iX produced during 2025. These technical specifications ensure that parts like the Flexible de dégazage batterie (61219311085) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pièces de montage batterie assembly?
- Each item in the Pièces de montage batterie corresponds to the numbered list below the illustration. For the 8 Series G14 Cabriolet M850iX, you can identify the Flexible de dégazage batterie by locating its position on the schematic, which then links to the official BMW part number 61219311085 for the Electricité du véhicule section.
