Boîtier électroniq module fonction hayon for BMW 3 Series G21 Touring 330d (2022)

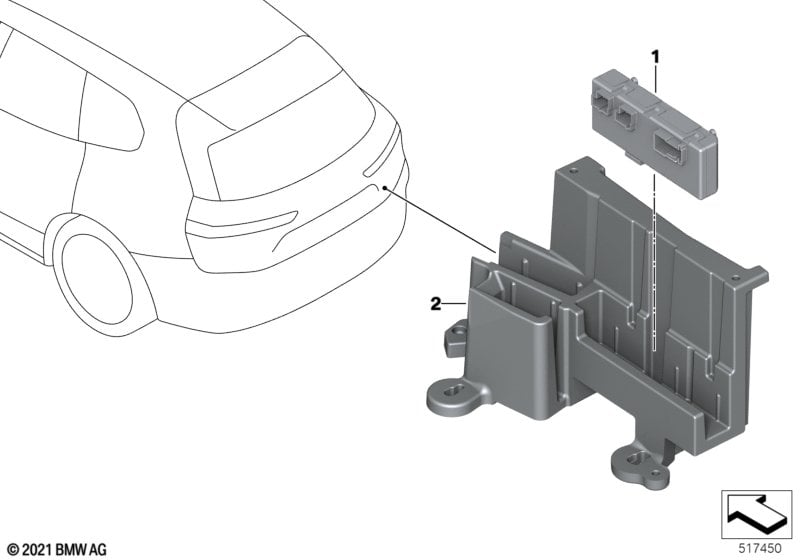

This Boîtier électroniq module fonction hayon technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Pack compartiment à bagages |
S418A=Oui |
|||||||||
| 01 | Boîtier électroniq module fonction hayon | 1 | 61355A19DB3 | Shop at ECS Tuning | ||||||
| Pour véhicules avec Pack compartiment à bagages |
S418A=Non |
|||||||||
| 01 | Boîtier électroniq module fonction hayon | 1 | 11/2019 | 61355A19DB2 | Shop at ECS Tuning | |||||
| 02 | Matelassure HKFM | 1 | 61357499307 | Shop at ECS Tuning | ||||||
