Câble de rép.faisceau câbles princip.HSD for BMW 1 Series F70 120 (2025)

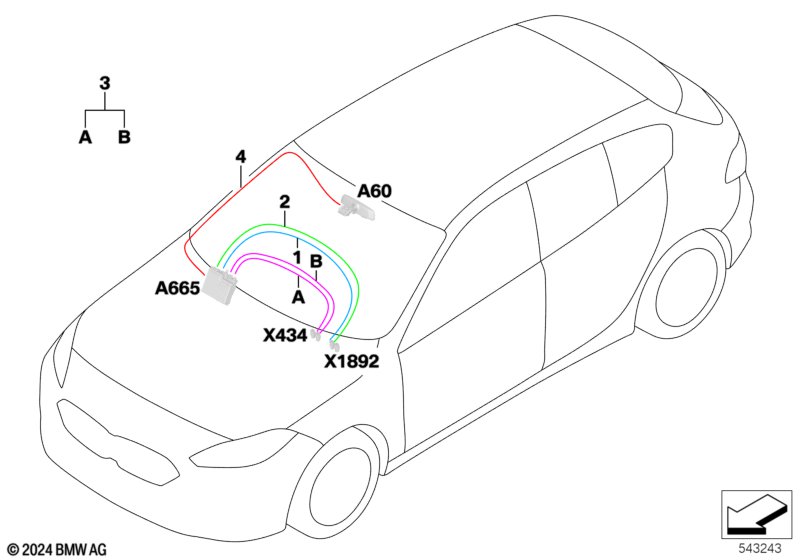

This Câble de rép.faisceau câbles princip.HSD technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Module de réparation | 1 | 61115B44208 | NoS | Shop at ECS Tuning | |||||
| 02 | Câble HSD | 1 | 61115A8A9D9 | NoS | Shop at ECS Tuning | |||||
| 03 | Câble HSD | 1 | 61115A8A9E0 | NoS | Shop at ECS Tuning | |||||
| 04 | Câble HSD | 1 | 61115B44209 | NoS | Shop at ECS Tuning |
Note
- NoS = No Stock (Pièce pas en stock dans magasin central)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F70 120 Câble de rép.faisceau câbles princip.HSD?
- This technical diagram illustrates the Câble de rép.faisceau câbles princip.HSD within the Electricité du véhicule group for the 1 Series F70 120 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Module de réparation (Part #61115B44208).
- Which models use the hardware listed in this Câble de rép.faisceau câbles princip.HSD?
- The hardware and components featured in the Câble de rép.faisceau câbles princip.HSD are specific to the 1 Series F70 120 produced during 2025. These technical specifications ensure that parts like the Module de réparation (61115B44208) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Câble de rép.faisceau câbles princip.HSD assembly?
- Each item in the Câble de rép.faisceau câbles princip.HSD corresponds to the numbered list below the illustration. For the 1 Series F70 120, you can identify the Module de réparation by locating its position on the schematic, which then links to the official BMW part number 61115B44208 for the Electricité du véhicule section.
