Instruments for BMW 5 Series E12 520 (1976)

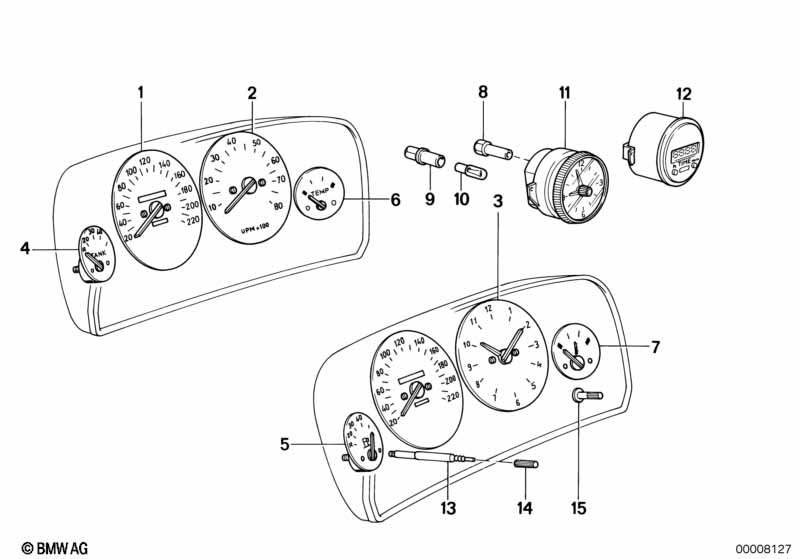

This Instruments technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tachymetre | KM/H | 1 | 62121354902 | arrêté | Shop at ECS Tuning | ||||
| 01 | Tachymetre | MPH+KM/H | 1 | 62121354903 | arrêté | Shop at ECS Tuning | ||||
| 02 | Compte-tours | 1 | 62131362447 | Shop at ECS Tuning | ||||||
| 03 | Montre | 1 | 62111356493 | $588.69 | arrêté | Shop at ECS Tuning | ||||
| 04 | Jauge de carburant | 70 L | 1 | 09/1974 | 02/1977 | 62111354934 | arrêté | Shop at ECS Tuning | ||
| 04 | Jauge de carburant | 7O L | 1 | 09/1974 | 02/1977 | 62111358438 | arrêté | Shop at ECS Tuning | ||
| 07 | Telethermometre | 1 | 62131363714 | Shop at ECS Tuning | ||||||
| 13 | Arbre de rappel | 1 | 62121363214 | $1.58 | arrêté | Shop at ECS Tuning | ||||
| 14 | Bouton-poussoir | 1 | 62121363213 | $2.16 | Shop at ECS Tuning | |||||
| 15 | Bouton de reglage | 1 | 62131370240 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
