Instruments d'information supplementaire for BMW 7 Series E23 728 (1979)

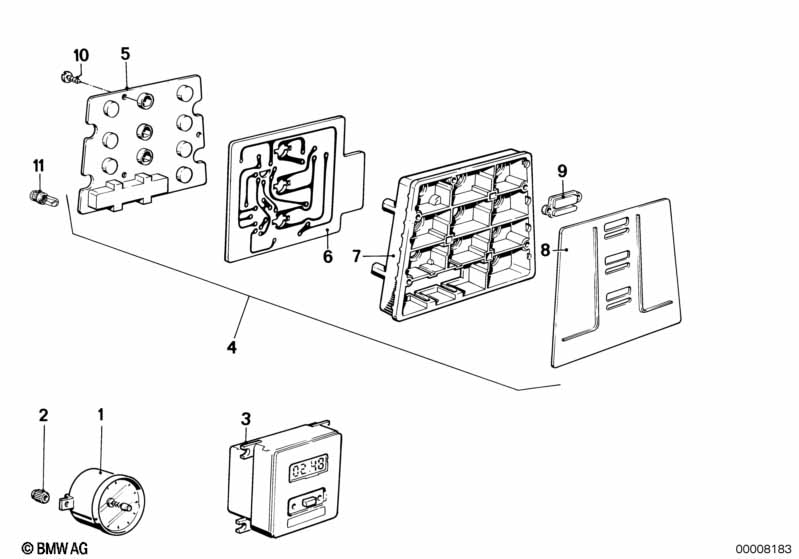

This Instruments d'information supplementaire technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Montre | 1 | 08/1979 | 62131362995 | $126.11 | arrêté | Shop at ECS Tuning | |||
| 02 | Ecrou molete | M4 | 2 | 08/1979 | 62131362983 | arrêté | Shop at ECS Tuning | |||
| 04 | Cache | 1 | 08/1978 | 09/1981 | 62141366286 | $76.72 | arrêté | Shop at ECS Tuning | ||
| 06 | Carte de circuits imprime | 1 | 08/1978 | 09/1981 | 62141366283 | arrêté | Shop at ECS Tuning | |||
| 07 | Boîtier | 1 | 09/1981 | 62141361903 | arrêté | Shop at ECS Tuning | ||||
| 08 | Cache | 1 | 09/1981 | 62141361911 | arrêté | Shop at ECS Tuning | ||||
| 09 | Lampe de controle av.symbole vert | 3 | 09/1981 | 62141361242 | arrêté | Shop at ECS Tuning | ||||
| 10 | Vis a tole tête bombee | ST3,5X13 | 3 | 09/1981 | 07119906720 | $0.47 | Shop at ECS Tuning | |||
| 11 | Ampoule | 1,2W | 3 | 09/1981 | 62111368299 | $3.00 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
