Phare-servomoteur for BMW 8 Series E31 850Ci

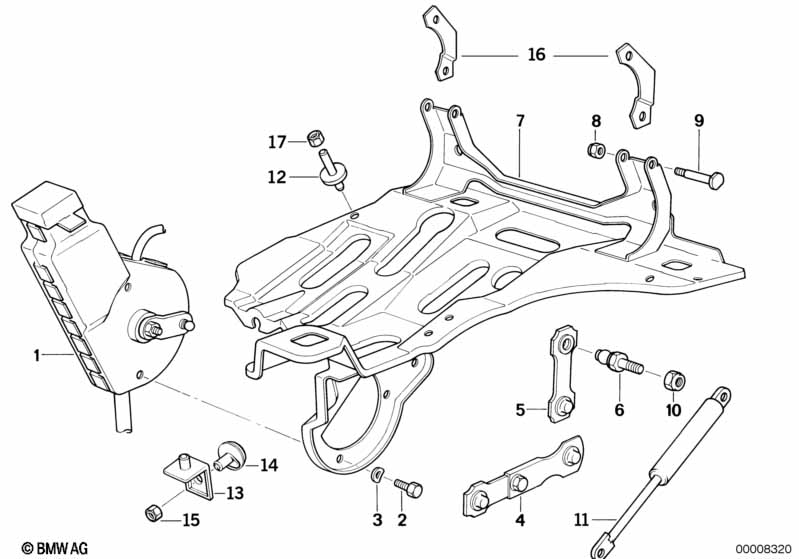

This Phare-servomoteur technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Commande reglable gauche | 1 | 67161383953 | $317.07 | Shop at ECS Tuning | |||||
| 01 | Commande reglable droite | 1 | 67161383954 | $317.07 | Shop at ECS Tuning | |||||
| 02 | Vis six pans | M5X16 | 6 | 07119913241 | $0.18 | arrêté | Shop at ECS Tuning | |||
| 03 | Rondelle elastique | B5 | 7 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Levier de reglage | 2 | 63121970635 | $14.05 | arrêté | Shop at ECS Tuning | ||||
| 05 | Arbre de commande | 4 | 63121970637 | $7.02 | arrêté | Shop at ECS Tuning | ||||
| 06 | Goujon fileté | 4 | 63121970639 | $17.35 | Shop at ECS Tuning | |||||
| 07 | Plaque de support gauche | 1 | 63121970565 | $238.03 | Shop at ECS Tuning | |||||
| 07 | Plaque-support droite | 1 | 63121970566 | $238.03 | Shop at ECS Tuning | |||||
| 08 | Ecrou à six pans autobloquant | M6-10 ZN | 2 | 05/1999 | 07129922705 | $0.27 | arrêté | Shop at ECS Tuning | ||
| 08 | Ecrou à six pans autobloquant | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Goujon fileté | 2 | 63121392004 | $6.28 | Shop at ECS Tuning | |||||
| 10 | Ecrou à six pans autobloquant | M8 | 4 | 07129922716 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Amortisseur | 2 | 63128124448 | $61.43 | arrêté | Shop at ECS Tuning | ||||
| 12 | Vis d'ajustement | 8 | 63128108411 | $8.50 | arrêté | Shop at ECS Tuning | ||||
| 13 | Equerre d'appui | 4 | 63128124447 | $8.22 | Shop at ECS Tuning | |||||
| 14 | Vis | 4 | 63128124443 | $10.52 | arrêté | Shop at ECS Tuning | ||||
| 15 | Ecrou à six pans | M10 | 4 | 51111852978 | $2.68 | Shop at ECS Tuning | ||||
| 16 | Support gauche | 1 | 63128124689 | $3.48 | Shop at ECS Tuning | |||||
| 16 | Appui droit | 1 | 63128124690 | $3.48 | Shop at ECS Tuning | |||||
| 17 | Ecrou à six pans | M10 | 1 | 51111852978 | $2.68 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
