Projecteur for BMW 1500-2000CS 1800

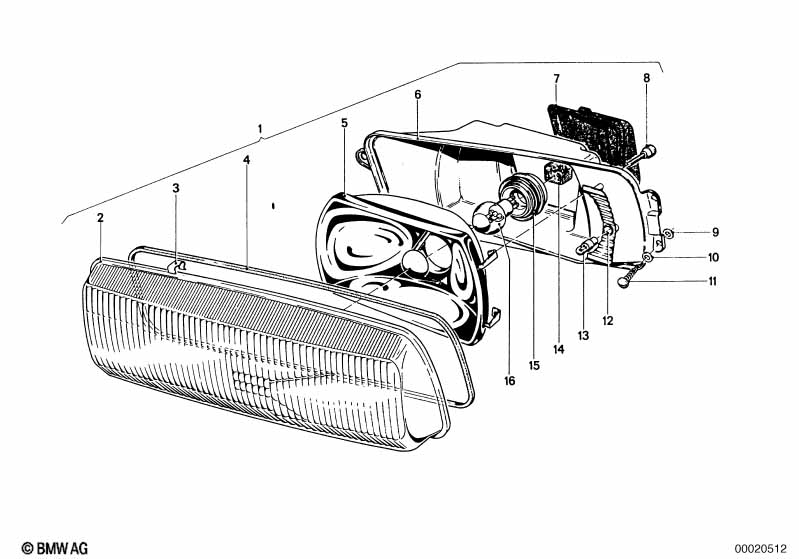

This Projecteur technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Projecteur gauche | 1 | 01/1966 | 12/1971 | 63128750250 | arrêté | Shop at ECS Tuning | |||
| 01 | Projecteur droit | 1 | 01/1966 | 12/1971 | 63128750251 | arrêté | Shop at ECS Tuning | |||
| 02 | Verre de phare gauche | 1 | 01/1966 | 12/1971 | 63121350891 | $121.17 | arrêté | Shop at ECS Tuning | ||
| 02 | Verre de phare droit | 1 | 01/1966 | 12/1971 | 63121350892 | $33.61 | arrêté | Shop at ECS Tuning | ||
| 03 | Ressort de fixation | 6 | 63128750259 | $0.39 | arrêté | Shop at ECS Tuning | ||||
| 04 | Joint | 2 | 63128750258 | arrêté | Shop at ECS Tuning | |||||
| 05 | Reflecteur gauche | 1 | 01/1966 | 12/1971 | 63128750260 | $83.06 | arrêté | Shop at ECS Tuning | ||
| 05 | Reflecteur droit | 1 | 01/1966 | 12/1971 | 63128750261 | $100.12 | arrêté | Shop at ECS Tuning | ||
| 06 | Anneau de fixation | 1 | 63128750264 | arrêté | Shop at ECS Tuning | |||||
| 06 | Anneau de fixation | 1 | 63128750265 | arrêté | Shop at ECS Tuning | |||||
| 07 | Cache | 2 | 63128750268 | arrêté | Shop at ECS Tuning | |||||
| 08 | Vis d'ajustement | 4 | 63128750274 | arrêté | Shop at ECS Tuning | |||||
| 09 | Rondelle caoutchouc | 8 | 34414045712 | $0.20 | Shop at ECS Tuning | |||||
| 10 | Plaque d'appui | A6,4-200HV-ZNS3 | 8 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Vis a tole tête bombee | AM6,2X22 | 8 | 07119901240 | arrêté | Shop at ECS Tuning | ||||
| 12 | Douille d'ampoule | 2 | 62148680130 | $3.25 | Shop at ECS Tuning | |||||
| 13 | Ampoule | 12V 4W | 2 | 07509063576 | $1.58 | Shop at ECS Tuning | ||||
| 14 | Douille isolante pour projecteur | 2 | 01/1972 | 61131352234 | $1.72 | arrêté | Shop at ECS Tuning | |||
| 14 | Fiche | 2 | 61131352357 | arrêté | Shop at ECS Tuning | |||||
| 15 | Anneau de fixation | 2 | 63128750272 | arrêté | Shop at ECS Tuning | |||||
| 16 | Ampoule | 12V 40/45W | 2 | 07119978396 | $7.47 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
