Feu clignotant avant for BMW 1500-2000CS 1800

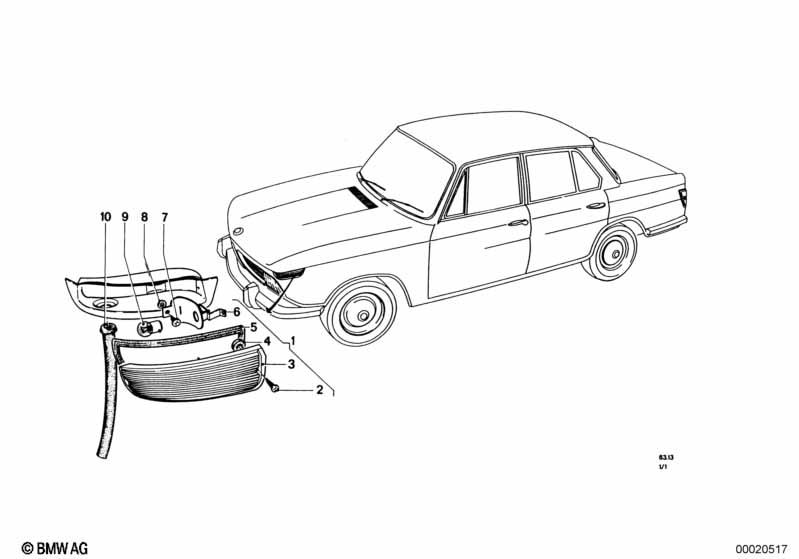

This Feu clignotant avant technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Feu clignotant gauche | 1 | 63131350975 | $310.35 | arrêté | Shop at ECS Tuning | ||||
| 01 | Feu clignotant droite | 1 | 63131350976 | $310.35 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Version Italie |
L814A=Oui |
|||||||||
| 01 | Feu clignotant gauche | 1 | 02/1962 | 01/1972 | 63131350991 | arrêté | Shop at ECS Tuning | |||
| 01 | Feu clignotant droite | 1 | 02/1962 | 01/1972 | 63131350992 | arrêté | Shop at ECS Tuning | |||
| 02 | Jeu vis lent. noyee 20 | ST3,5X19 | 4 | 07509064376 | arrêté | Shop at ECS Tuning | ||||
| 05 | Joint | 1 | 63131350980 | arrêté | Shop at ECS Tuning | |||||
| 05 | Joint | 1 | 63131350981 | arrêté | Shop at ECS Tuning | |||||
| Pour véhicules avec Version USA |
=Oui |
|||||||||
| 06 | Reflecteur | 2 | 02/1962 | 08/1969 | 63138654152 | arrêté | Shop at ECS Tuning | |||
| 09 | Ampoule | 6V 15W | 2 | 02/1962 | 12/1968 | 63138454130 | arrêté | Shop at ECS Tuning | ||
| 09 | Ampoule | P21W/12V/21W | 2 | 01/1966 | 01/1972 | 63217160789 | $1.96 | Shop at ECS Tuning | ||
| 09 | Ampoule Longlife | P21W/12V/21W | 2 | 01/1966 | 01/1972 | 63217160790 | $2.38 | Shop at ECS Tuning | ||
| Pour véhicules avec Version USA |
=Oui |
|||||||||
| 09 | Ampoule | 6V18/5W | 2 | 02/1962 | 12/1968 | 63248654131 | arrêté | Shop at ECS Tuning | ||
| 10 | Douille | 2 | 63138654175 | $19.47 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
