Feu arrière for BMW 3 Series E91 330i (2008)

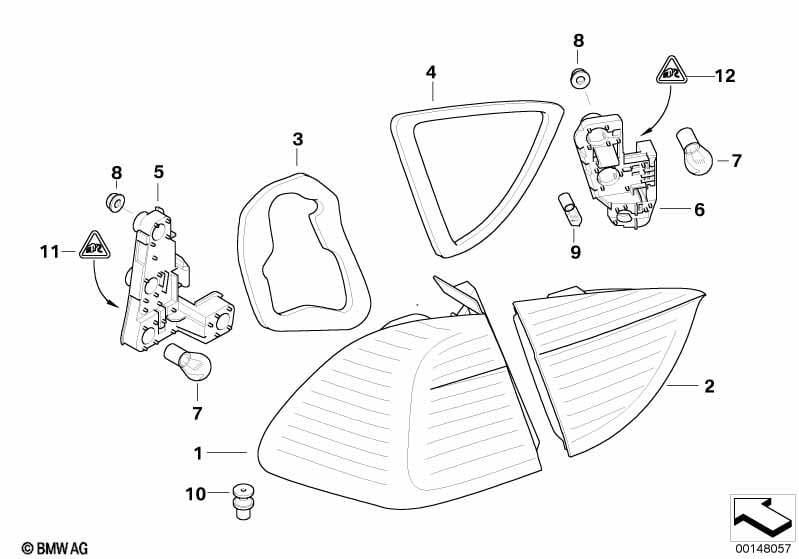

This Feu arrière technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Feu arrière panneau latéral gauche | 1 | 63217160061 | Shop at ECS Tuning | ||||||
| 01 | Feu arrière panneau latéral droit | 1 | 63217160062 | Shop at ECS Tuning | ||||||
| 02 | Feu arrière couvercle de coffre gauche | 1 | 63217160063 | $101.97 | Shop at ECS Tuning | |||||
| 02 | Feu arrière couvercle de coffre droit | 1 | 63217160064 | $101.97 | Shop at ECS Tuning | |||||
| 03 | Joint feu AR, panneau latéral gauche | 1 | 63217160071 | $7.25 | Shop at ECS Tuning | |||||
| 03 | Joint feu AR, panneau latéral droit | 1 | 63217160072 | Shop at ECS Tuning | ||||||
| 04 | Joint feu AR, hayon AR | 1 | 63217160074 | $5.98 | Shop at ECS Tuning | |||||
| 05 | Porte-lampe feu arr. panneau latéral gau | 1 | 63217160075 | $15.48 | Shop at ECS Tuning | |||||
| 05 | Porte-lampe feu arr. panneau latéral dr. | 1 | 63217160076 | $15.48 | Shop at ECS Tuning | |||||
| 06 | Porte-lampe feu arr.couvercle coffre ga. | 1 | 63217183843 | $13.72 | Shop at ECS Tuning | |||||
| 06 | Porte-lampe feu arr.couvercle coffre dro | 1 | 63217183844 | $13.72 | Shop at ECS Tuning | |||||
| 07 | Ampoule Longlife | P21W/12V/21W | X | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 08 | Ecrou six pans avec plaque | M5-8-ZNNIV SI | 12 | 07129904381 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Ampoule Longlife | 12V 21W H21W | X | 63217160788 | $11.70 | Shop at ECS Tuning | ||||
| 10 | Clip feu arrière | 2 | 07147143826 | $0.47 | Shop at ECS Tuning | |||||
| 11 | Boîtier prise courant uni. MPQ non codé | 6 POL. | 2 | 61136984758 | $3.12 | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Contacteur à douille ELO-Power 2,8x0,63 | 0,5-1,0 MM² | 2 | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Contacteur à douille ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | 2 | 61138364834 | $0.35 | Shop at ECS Tuning | ||||
| -- | Contacteur à douille ELO-Power 2,8x0,63 | 0,35-0,5 MM² SN | 2 | 61138377162 | $0.35 | Shop at ECS Tuning | ||||
| 11 | Boîtier prise de courant | 6 POL. | 2 | 61138369702 | $0.75 | Shop at ECS Tuning | ||||
| ne convenant qu'avec | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,0 MM² | X | 61130006626 | $1.83 | arrêté | Shop at ECS Tuning | |||
| 12 | Boîtier prise courant univers.non codé | 4 POL. | 2 | 61136984750 | $5.03 | Shop at ECS Tuning | ||||
| 12 | kit de rép. boîtier femelle | 4 POL. | 2 | 61132359996 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
