Feu arrière for BMW MINI Clubman R55 Cooper (2006)

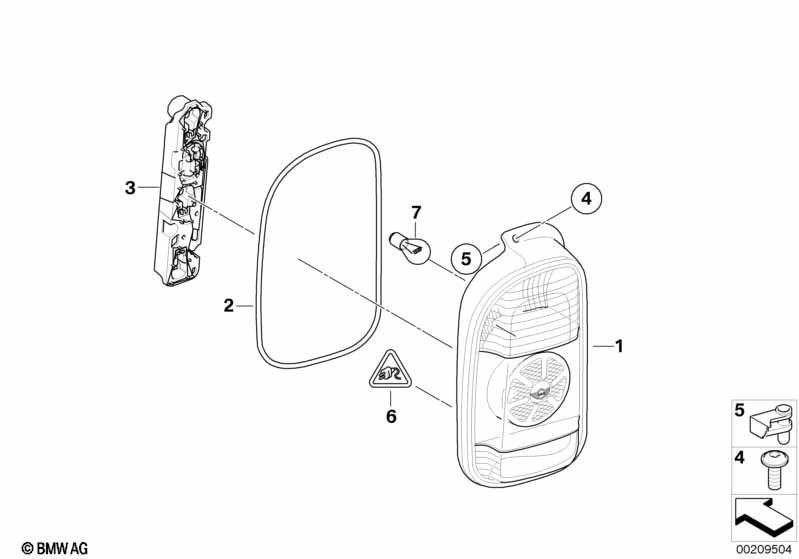

This Feu arrière technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Clignotants blancs |
S785A=Non |
|||||||||
| 01 | Feu arrière panneau latéral gauche | 1 | 08/2010 | 63217167411 | $109.57 | Shop at ECS Tuning | ||||
| 01 | Feu arrière panneau latéral droit | 1 | 08/2010 | 63217167412 | $109.57 | Shop at ECS Tuning | ||||
| Pour véhicules avec Clignotants blancs |
S785A=Oui |
|||||||||
| 01 | Feu arrière panneau latéral blanc gauche | 1 | 08/2010 | 63212754529 | $126.97 | Shop at ECS Tuning | ||||
| 01 | Feu arrière panneau latéral blanc droit | 1 | 08/2010 | 63212754530 | $126.97 | Shop at ECS Tuning | ||||
| 02 | Joint de feu arriere | 1 | 08/2010 | 63212758127 | $4.70 | Shop at ECS Tuning | ||||
| 03 | Culot de lampe p feu arrière gauche | 1 | 08/2010 | 63212758129 | $17.12 | Shop at ECS Tuning | ||||
| 03 | Culot de lampe p feu arrière droit | 1 | 08/2010 | 63212758130 | $17.12 | Shop at ECS Tuning | ||||
| Pour véhicules avec Clignotants blancs |
S785A=Oui |
|||||||||
| 03 | Culot de lampe p feu arrière gauche | 1 | 08/2010 | 63212758125 | $17.12 | Shop at ECS Tuning | ||||
| 03 | Culot de lampe p feu arrière droit | 1 | 08/2010 | 63212758126 | $17.12 | Shop at ECS Tuning | ||||
| 04 | Vis à tête bombée | 2 | 08/2010 | 63212756353 | $0.13 | Shop at ECS Tuning | ||||
| 05 | Ecrou extensible | 2 | 08/2010 | 63212756354 | $0.58 | Shop at ECS Tuning | ||||
| 06 | Boîtier femelle universel | 6 POL. | 2 | 08/2010 | 12527505225 | $2.53 | Shop at ECS Tuning | |||
| uniquement en combinaison avec | ||||||||||
| -- | Contact femelle SLK 2,8 ELA avec câble | 0,2- 0,5MM²/AG | 4 | 08/2010 | 12520143427 | $2.03 | Shop at ECS Tuning | |||
| 07 | Ampoule Longlife | P21W/12V/21W | 4 | 08/2010 | 63217160790 | $2.38 | Shop at ECS Tuning | |||
| 07 | Ampoule jaune | PY21W/12V/21W | 2 | 08/2010 | 63217160791 | $5.58 | Shop at ECS Tuning | |||
