Cable a tirette pour reglage de clapet for BMW 3 Series E30 325ix (1986)

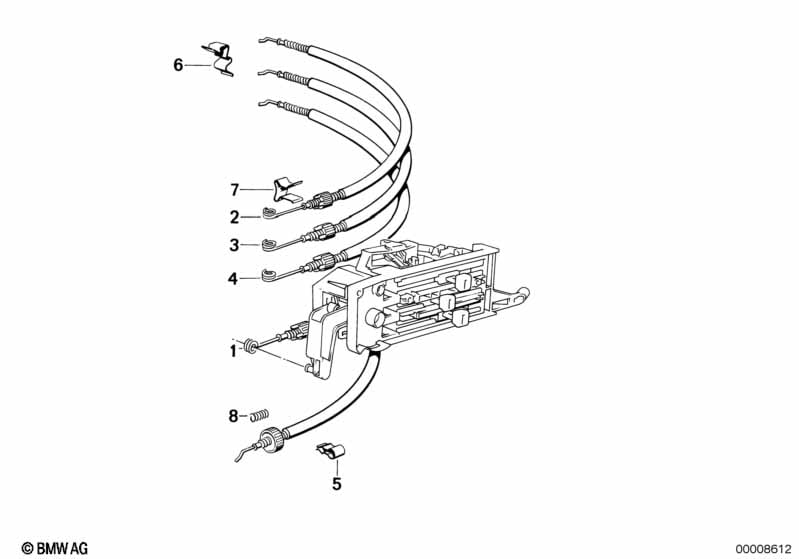

This Cable a tirette pour reglage de clapet technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| NE CONVENANT QU'AVEC CHAUFFAGE (TUBE D'ENTREE PLASTIC) |
||||||||||
| 01 | Cable a tirette temperature | 1 | 64111380524 | $13.63 | Shop at ECS Tuning | |||||
| NE CONVENANT QU'AVEC CLIMATISEUR CHAUFFAGE (TUBE D'ENTREE ALUMINIUM) |
||||||||||
| 01 | Cable a tirette temperature | 1 | 64111370915 | $12.50 | arrêté | Shop at ECS Tuning | ||||
| 02 | Cable a tirette de degivrage | 1 | 64111370916 | $13.63 | Shop at ECS Tuning | |||||
| 03 | Cable a tirette aeration | 1 | 64111370917 | $13.63 | Shop at ECS Tuning | |||||
| 04 | Cable a tirette aeration inferieur | 1 | 64111370918 | $13.63 | arrêté | Shop at ECS Tuning | ||||
| 05 | Agrafe | 4 | 64111367615 | $0.68 | Shop at ECS Tuning | |||||
| 06 | Agrafe | 1 | 64111358563 | $1.83 | Shop at ECS Tuning | |||||
| 07 | Agrafe | 3 | 64111368019 | $1.12 | Shop at ECS Tuning | |||||
| 08 | Ressort | 1 | 64111381659 | $0.20 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
