Pieces de systeme de chauffage for BMW 5 Series E12 528 (1976)

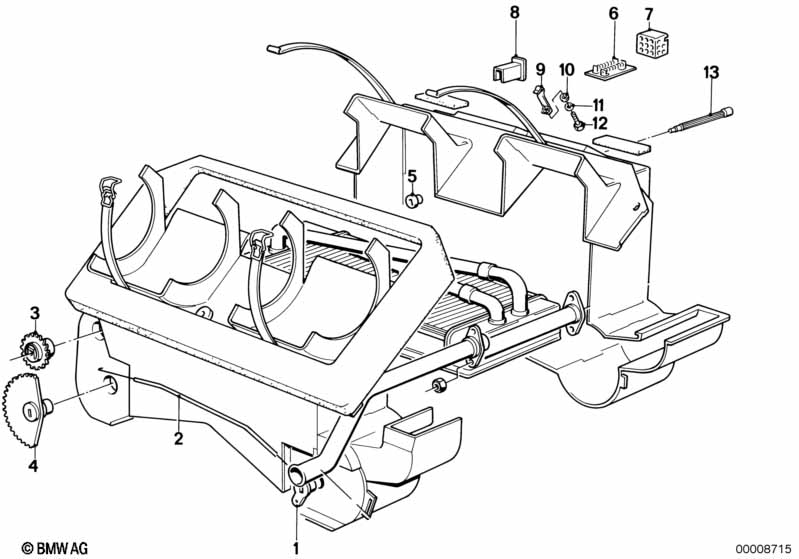

This Pieces de systeme de chauffage technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Levier | 1 | 64111359113 | $1.96 | arrêté | Shop at ECS Tuning | ||||
| 02 | Tringle de liaison | 1 | 64111359111 | $10.49 | arrêté | Shop at ECS Tuning | ||||
| 03 | Pignon | 1 | 64111355767 | $3.09 | arrêté | Shop at ECS Tuning | ||||
| 04 | Pignon | 1 | 64111359112 | arrêté | Shop at ECS Tuning | |||||
| 05 | Douille | 2 | 64111355765 | $0.61 | arrêté | Shop at ECS Tuning | ||||
| 07 | Resistance | BEHR | 1 | 64111366990 | $43.73 | arrêté | Shop at ECS Tuning | |||
| 08 | Douille isolante ventilateur chauffage | 1 | 64111355785 | $1.33 | arrêté | Shop at ECS Tuning | ||||
| 09 | Equerre | 1 | 64111355946 | arrêté | Shop at ECS Tuning | |||||
| 10 | Plaque d'appui | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 11 | Rondelle grower | B6 | 1 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Vis six pans | M6X35 | 1 | 07119913579 | $0.24 | Shop at ECS Tuning | ||||
| 13 | Raccord | 1 | 64111355766 | $4.23 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
