Pompe a carburant additionnelle for BMW 7 Series E23 735i

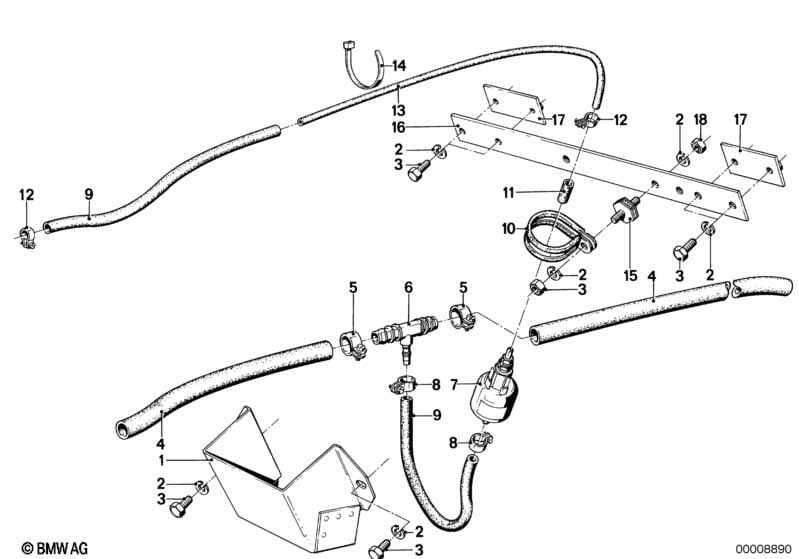

This Pompe a carburant additionnelle technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Recouvrement | 1 | 64121365679 | arrêté | Shop at ECS Tuning | |||||
| 02 | Rondelle élastique noire | B6-ZN | X | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 02 | Plaque d'appui | 5.3-140 HV-ZNS | X | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 02 | Rondelle elastique | B6-ZNS3 | X | 07119904496 | $1.78 | arrêté | Shop at ECS Tuning | |||
| 03 | Vis six pans | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 04 | Tuyau de carburant | 12X18 | X | 16121176440 | $15.25 | Shop at ECS Tuning | ||||
| 05 | Collier | L15-19 | 2 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 06 | Pièce de distribution | 1 | 64121366103 | $3.57 | arrêté | Shop at ECS Tuning | ||||
| 07 | Pompe a carburant | 1 | 64121365150 | $235.48 | arrêté | Shop at ECS Tuning | ||||
| 08 | Collier | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Tuyau de carburant | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 10 | Collier de tuyau | 1 | 64121365674 | $7.03 | arrêté | Shop at ECS Tuning | ||||
| 11 | Tuyau | D=3,5X7MM | X | 64121369914 | $13.06 | Shop at ECS Tuning | ||||
| 12 | Collier | A7 | 2 | 64121365694 | $2.53 | Shop at ECS Tuning | ||||
| 13 | Tuyau de carburant | 1 | 64121371371 | $10.94 | arrêté | Shop at ECS Tuning | ||||
| 14 | Attache-câble | L=292MM/B=4,8MM | 3 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 15 | Silentbloc | 1 | 64121365602 | $7.60 | Shop at ECS Tuning | |||||
| 16 | Support de pompe à carburant | 1 | 64121365678 | arrêté | Shop at ECS Tuning | |||||
| 17 | Bride de fixation | 2 | 64121365660 | arrêté | Shop at ECS Tuning | |||||
| 18 | Ecrou à six pans | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
