Conduites de réfrigérant for BMW 5 Series F10 LCI 535d (2013)

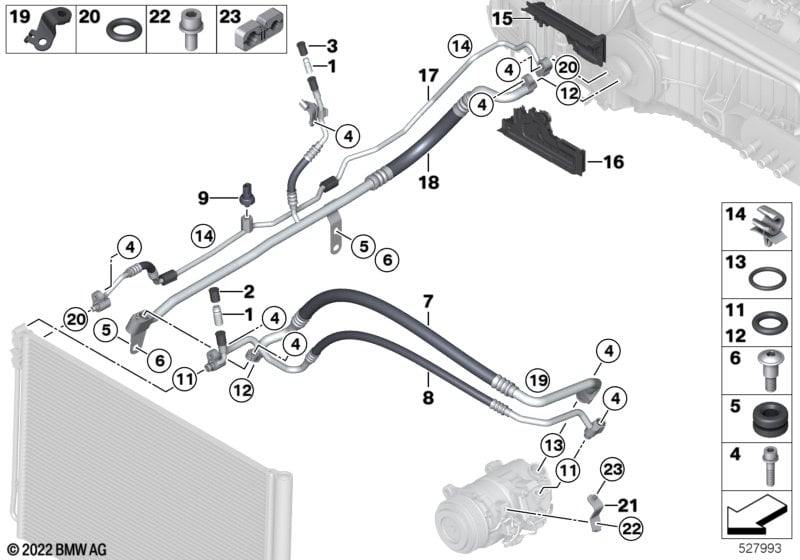

This Conduites de réfrigérant technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intérieur de valve | R134A/R1234YF | 1 | 64536922944 | $3.52 | Shop at ECS Tuning | ||||
| Pour véhicules avec Fluide frigorigène R1234yf |
S8R9A=Non |
|||||||||
| 02 | Capuchon conduite de pression | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| 03 | Capuchon conduite d'aspiration | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| 04 | Vis Torx avec rondelle | M6X25-U1-8.8 | 5 | 07129905558 | $0.44 | Shop at ECS Tuning | ||||
| 05 | Douille | 3 | 64128374551 | $1.98 | Shop at ECS Tuning | |||||
| 06 | Vis à tête bombée | 3 | 07149115235 | Shop at ECS Tuning | ||||||
| Pour véhicules avec Fluide frigorigène R1234yf |
S8R9A=Non |
|||||||||
| 07 | Tuyau d'aspiration | R134A | 1 | 64539248521 | Shop at ECS Tuning | |||||
| 08 | Tuyau de pression | R134A | 1 | 64539248522 | Shop at ECS Tuning | |||||
| 09 | Capteur de pression | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 11 | Anneau d'étanchéité | D=10,8 MM | 2 | 64508375741 | $2.04 | Shop at ECS Tuning | ||||
| 12 | Anneau d'étanchéité | D=13,7 MM | 2 | 64538375742 | $1.93 | Shop at ECS Tuning | ||||
| 13 | Anneau d'étanchéité | D=23 MM | 1 | 64508363041 | $1.22 | Shop at ECS Tuning | ||||
| 14 | Clip de conduite | D=10MM | 1 | 64539167145 | Shop at ECS Tuning | |||||
| 15 | Oeillet partie supérieure | 1 | 64509127397 | Shop at ECS Tuning | ||||||
| 16 | Douille partie inférieur | 1 | 64539119426 | Shop at ECS Tuning | ||||||
| 17 | Tuyau à pression | 1 | 64539120003 | +vieille matière | Shop at ECS Tuning | |||||
| 18 | Tuyau d'aspiration s.Tubulure de rempl. | 1 | 03/2009 | 64539201927 | Shop at ECS Tuning | |||||
| 19 | Support | 1 | 64539207793 | Shop at ECS Tuning | ||||||
| 20 | Anneau d'étanchéité | 9,5X2,5 | 2 | 64508374959 | $2.69 | Shop at ECS Tuning | ||||
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
