Pieces porte avant systeme hifi for BMW 7 Series E38 740i (2001)

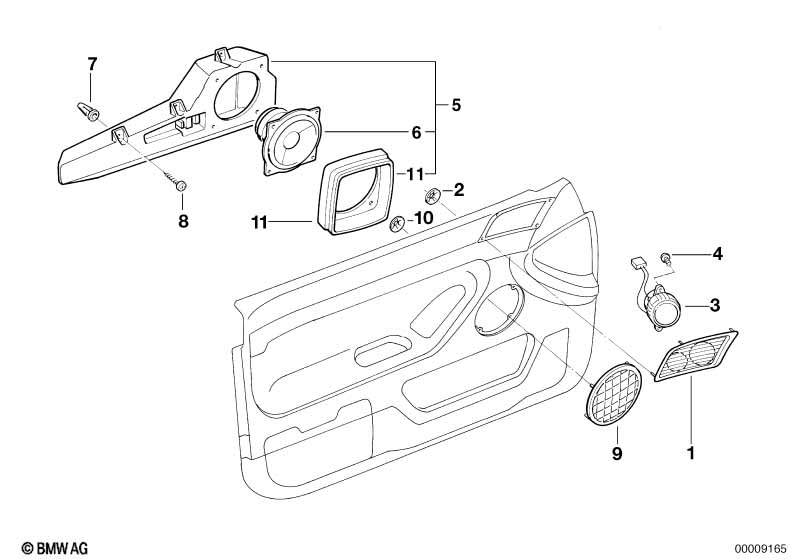

This Pieces porte avant systeme hifi technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pour véhicules avec Système de haut-parleurs HiFi |
S676A=Oui |
||||||||
| 01 | Haut-parleur d'aigus gauche hifi | SCHWARZ | 1 | 65138352697 | $54.78 | arrêté | Shop at ECS Tuning | |||
| 01 | Haut-parleur d'aigus destra hifi | SCHWARZ | 1 | 65138352698 | $54.78 | arrêté | Shop at ECS Tuning | |||
| 01 | Haut-parleur d'aigus gauche hifi | MARINEBLAU | 1 | 65138352699 | $54.78 | arrêté | Shop at ECS Tuning | |||
| 01 | Haut-parleur d'aigus destra hifi | MARINEBLAU | 1 | 65138352700 | $54.78 | arrêté | Shop at ECS Tuning | |||
| 01 | Haut-parleur d'aigus gauche hifi | DUNKELGRUEN | 1 | 65138352701 | $54.78 | arrêté | Shop at ECS Tuning | |||
| 01 | Haut-parleur d'aigus destra hifi | DUNKELGRUEN | 1 | 65138352702 | $54.78 | arrêté | Shop at ECS Tuning | |||
| 01 | Haut-parleur d'aigus gauche hifi | DUNKELBEIGE | 1 | 65138375009 | $54.78 | Shop at ECS Tuning | ||||
| 01 | Haut-parleur d'aigus destra hifi | DUNKELBEIGE | 1 | 65138375010 | $54.78 | Shop at ECS Tuning | ||||
| 02 | Ecrou de ressort | 8 | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
| 03 | Haut-parleur des mediums | 2 | 65138374982 | $48.28 | Shop at ECS Tuning | |||||
| 04 | Vis à tête bombée | 4 | 07146977946 | $0.83 | Shop at ECS Tuning | |||||
| 05 | Box haut-parleur de porte avant gauche | STEREO / HIFI | 1 | 65138371235 | $104.80 | arrêté | Shop at ECS Tuning | |||
| 05 | Box haut-parleur de porte avant droite | STEREO / HIFI | 1 | 65138371236 | $104.80 | Shop at ECS Tuning | ||||
| 06 | Haut-parleur | STEREO / HIFI | 2 | 65138352687 | $46.88 | Shop at ECS Tuning | ||||
| Pour véhicules avec Telephone de voiture |
=Oui |
|||||||||
| 06 | Haut-parleur | STEREO / HIFI | 2 | 65138352688 | $51.27 | Shop at ECS Tuning | ||||
| 07 | Ecrou extensible | ST 4.8 WEISS | 8 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Vis a tole tête bombee | ST4,8X16 | 8 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 09 | Cache de haut-parleur | SCHWARZ | 2 | 51418178241 | $16.05 | arrêté | Shop at ECS Tuning | |||
| 09 | Cache de haut-parleur | MARINEBLAU | 2 | 51418178242 | $14.13 | Shop at ECS Tuning | ||||
| 09 | Cache de haut-parleur | SANDBEIGE | 2 | 51418178999 | $14.13 | Shop at ECS Tuning | ||||
| 09 | Cache de haut-parleur | PEARLBEIGE | 2 | 51418246255 | $13.38 | arrêté | Shop at ECS Tuning | |||
| 09 | Cache de haut-parleur | DUNKELGRUEN | 2 | 51418179000 | $14.13 | arrêté | Shop at ECS Tuning | |||
| 09 | Cache de haut-parleur | GRAU | 2 | 51418190825 | $14.13 | Shop at ECS Tuning | ||||
| 09 | Cache de haut-parleur | LAVENDELGRAU | 2 | 51418190826 | $14.13 | Shop at ECS Tuning | ||||
| 09 | Cache de haut-parleur | PASTELLGRUEN | 2 | 51418190827 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Chrome-Line/SA345 |
=Oui |
|||||||||
| 09 | Cache de haut-parleur | SCHWARZ | 2 | 51418216716 | $26.75 | Shop at ECS Tuning | ||||
| 09 | Cache de haut-parleur | GRAU | 2 | 51418216717 | $13.38 | arrêté | Shop at ECS Tuning | |||
| 09 | Cache de haut-parleur | MARINEBLAU | 2 | 51418216718 | $13.38 | arrêté | Shop at ECS Tuning | |||
| 09 | Cache de haut-parleur | SANDBEIGE | 2 | 51418216719 | $13.38 | Shop at ECS Tuning | ||||
| 09 | Cache de haut-parleur | LAVENDELGRAU | 2 | 51418216720 | $14.17 | arrêté | Shop at ECS Tuning | |||
| 09 | Cache de haut-parleur | DUNKELGRUEN | 2 | 51418216721 | $13.38 | arrêté | Shop at ECS Tuning | |||
| 09 | Cache de haut-parleur | PASTELLGRUEN | 2 | 51418216722 | $14.17 | arrêté | Shop at ECS Tuning | |||
| 09 | Cache de haut-parleur | PEARLBEIGE | 2 | 09/1998 | 51418247497 | $21.98 | arrêté | Shop at ECS Tuning | ||
| 10 | Ecrou de ressort | 8 | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
| 11 | Anneau insonorisation pour haut-parleur | 2 | 65138369083 | $9.28 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
