Radio-satellite for BMW 5 Series E60 530i (2005)

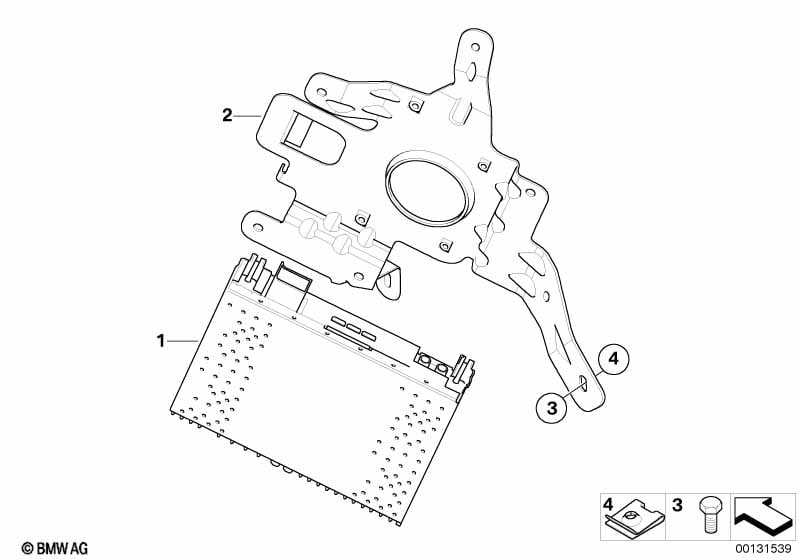

This Radio-satellite technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radio-satellite | 1 | 03/2006 | 65129192274 | $495.00 | arrêté | Shop at ECS Tuning | |||
| uniquement en combinaison avec | ||||||||||
| -- | SDARS ant. connector housing | 1 | 03/2006 | 65120037903 | $5.00 | Shop at ECS Tuning | ||||
| -- | Instructions de montage | 1 | 03/2006 | 01290439468 | Shop at ECS Tuning | |||||
| 01 | Radio-satellite | 1 | 03/2008 | 65129278266 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | SDARS ant. connector housing | 1 | 03/2008 | 65120037903 | $5.00 | Shop at ECS Tuning | ||||
| -- | BC Mix 359 Blau | 1000ML | 1 | 03/2008 | 51910037990 | Shop at ECS Tuning | ||||
| 02 | Support, radio-satellite/amplificateur | 1 | 65106925468 | $11.77 | Shop at ECS Tuning | |||||
| 03 | Vis six pans | M5X14 | 7 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Ecrou tôlé | M5 | 4 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 530i Radio-satellite?
- This technical diagram illustrates the Radio-satellite within the Audio - Navigation - Syst. électroniques group for the 5 Series E60 530i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Radio-satellite (Part #65129192274).
- Which models use the hardware listed in this Radio-satellite?
- The hardware and components featured in the Radio-satellite are specific to the 5 Series E60 530i produced during 2005. These technical specifications ensure that parts like the Radio-satellite (65129192274) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Radio-satellite assembly?
- Each item in the Radio-satellite corresponds to the numbered list below the illustration. For the 5 Series E60 530i, you can identify the Radio-satellite by locating its position on the schematic, which then links to the official BMW part number 65129192274 for the Audio - Navigation - Syst. électroniques section.
