Pièces de haut-parleur de porte ar for BMW 7 Series G70 740i (2025)

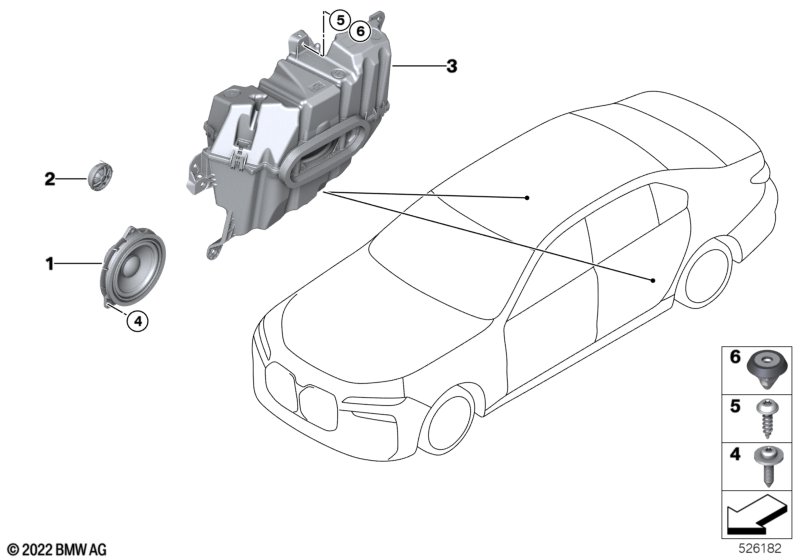

This Pièces de haut-parleur de porte ar technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Bowers & Wilkins High End Sound System |
S6F1A=Non |
|||||||||
| 01 | Haut-parleur moyennes fréquences | ALEV 3 | 2 | 65135A0F467 | Shop at ECS Tuning | |||||
| Pour véhicules avec Bowers & Wilkins High End Sound System |
S6F1A=Oui |
|||||||||
| 01 | Haut-parleur moyennes fréquences | ALEV 4 | 2 | 65135A12120 | Shop at ECS Tuning | |||||
| Pour véhicules avec Bowers & Wilkins High End Sound System |
S6F1A=Non |
|||||||||
| 02 | Haut-parleur des aigus | ALEV 3 | 2 | 65135A07EA6 | Shop at ECS Tuning | |||||
| Pour véhicules avec Bowers & Wilkins High End Sound System |
S6F1A=Oui |
|||||||||
| 02 | Haut-parleur des aigus | ALEV 4 | 2 | 65132622773 | Shop at ECS Tuning | |||||
| 03 | Haut-parleur graves Compound, porte ArG | ALEV 4 | 1 | 65135A2FE53 | Shop at ECS Tuning | |||||
| 03 | Haut-parleur graves Compound, porte ArD | ALEV 4 | 1 | 65135A2FE54 | Shop at ECS Tuning | |||||
| 04 | Vis | V-TS5X20 ZNS3 | 10 | 51119908446 | Shop at ECS Tuning | |||||
| 05 | Vis à tête bombée | TS 5X16 | 6 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| 06 | Ecrou extensible | 6 | 07147429950 | Shop at ECS Tuning | ||||||
