Dispositif d'attelage amovible for BMW 7 Series E32 730i

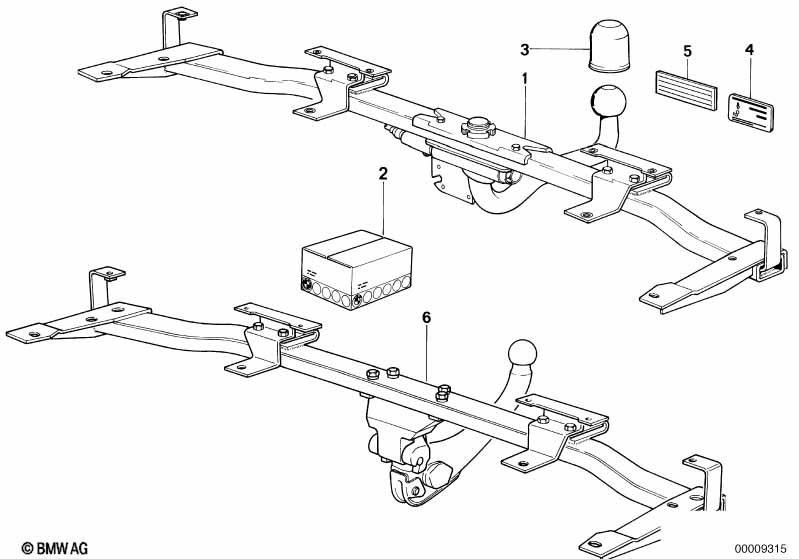

This Dispositif d'attelage amovible technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dispositif d'attelage amovible | 1 | 71601136361 | $1277.82 | Shop at ECS Tuning | |||||
| 03 | Capuchon | ORIS | 1 | 71601133279 | Shop at ECS Tuning | |||||
| 04 | Plaquette charge de timon | 50KG | 1 | 71601135081 | Shop at ECS Tuning | |||||
| 04 | Plaquette charge de timon | 75KG | 1 | 71601135082 | Shop at ECS Tuning | |||||
| 04 | Plaquette charge de timon | MIN 50KG | 1 | 71601137734 | arrêté | Shop at ECS Tuning | ||||
| 05 | Panneau | 1 | 71601135084 | arrêté | Shop at ECS Tuning | |||||
| 06 | Dispositif d'attelage amovible | 1 | 71601136361 | $1277.82 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
