Trousse à outils/Cric for BMW 8 Series E31 850Ci (1991)

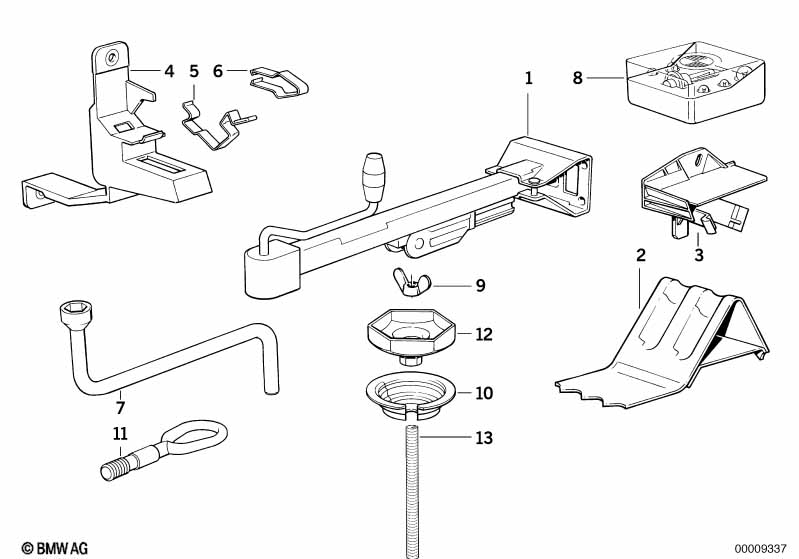

This Trousse à outils/Cric technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cric | 1 | 71121179632 | $74.57 | arrêté | Shop at ECS Tuning | ||||
| 02 | Cale aluminium | 1 | 71126756392 | $11.50 | Shop at ECS Tuning | |||||
| 03 | Support | 1 | 71121181160 | $3.88 | arrêté | Shop at ECS Tuning | ||||
| 04 | Support | 1 | 71121180621 | $5.45 | Shop at ECS Tuning | |||||
| 05 | Etrier de ressort | 1 | 71121180665 | $2.17 | Shop at ECS Tuning | |||||
| 06 | Ressort de fixation | 1 | 71121180622 | $0.65 | Shop at ECS Tuning | |||||
| 07 | Manivelle | CHROM | 1 | 71121180686 | $14.56 | arrêté | Shop at ECS Tuning | |||
| 09 | Ecrou aile | M8 | 1 | 07119924040 | $1.42 | Shop at ECS Tuning | ||||
| Pour véhicules avec Cinematique active d'essieu arrière |
=Oui |
|||||||||
| 09 | Ecrou molete | M8 | 1 | 07119900228 | arrêté | Shop at ECS Tuning | ||||
| 10 | Support de roue de secours | 1 | 71151180625 | $3.62 | Shop at ECS Tuning | |||||
| 11 | Anneau de remorquage | 1 | 72157203519 | $23.87 | Shop at ECS Tuning | |||||
| 12 | Cle hexagonale de couvre-moyeu | SW=17MM | 1 | 36131180626 | $8.82 | Shop at ECS Tuning | ||||
| 13 | Tringle fileté | M8X192 | 1 | 41118209460 | $3.62 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
