Trousse à outils/Cric for BMW 2500-3.3Li 3.0SBav

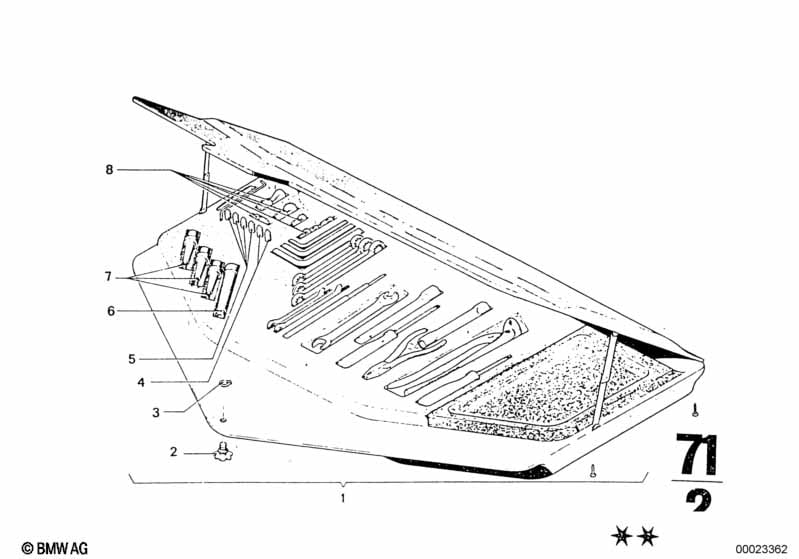

This Trousse à outils/Cric technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0SBav. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Boîte à outils | OHNE INHALT | 1 | 71111102916 | Shop at ECS Tuning | |||||
| 03 | Bague de securité | 1 | 07119934071 | $0.44 | Shop at ECS Tuning | |||||
| 04 | Fusible | 8A | 2 | 61138760138 | $1.83 | Shop at ECS Tuning | ||||
| 05 | Fusible | 16A | 2 | 61138760140 | $1.83 | Shop at ECS Tuning | ||||
| 05 | Fusible | 5A | 2 | 61138760141 | $0.14 | Shop at ECS Tuning | ||||
| 06 | Fiche de bougie | 1000-OHM | 1 | 12121356004 | $7.84 | arrêté | Shop at ECS Tuning | |||
| 07 | Bougie | BOSCH W175T2 | 1 | 12121351716 | arrêté | Shop at ECS Tuning | ||||
| 08 | Ampoule | 12V 5W | 1 | 07119905336 | $1.58 | Shop at ECS Tuning | ||||
| 08 | Ampoule | P21W/12V/21W | 1 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 08 | Ampoule Longlife | P21W/12V/21W | 1 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 08 | Ampoule | 12V 5W | 1 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 08 | Ampoule Longlife | 12V 21/5W | 1 | 06/1969 | 07/1973 | 07119905511 | $4.88 | Shop at ECS Tuning | ||
| 08 | Ampoule | 12V 21/5W | 1 | 06/1969 | 07/1973 | 63217160793 | $3.92 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
