Trousse à outils/Cric for BMW 2500-3.3Li 3.0SBav

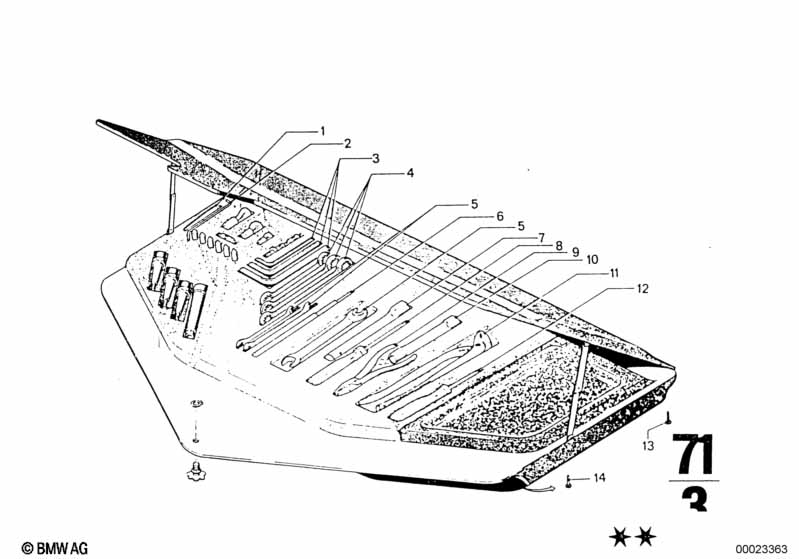

This Trousse à outils/Cric technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0SBav. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Jeu de cales | 1 | 71111103093 | arrêté | Shop at ECS Tuning | |||||
| 02 | Goupille | 1 | 71111103094 | $5.14 | Shop at ECS Tuning | |||||
| 03 | Clé à six pans creux | 6 | 1 | 07119906026 | arrêté | Shop at ECS Tuning | ||||
| 03 | Clé à six pans creux | 8 | 1 | 07119906032 | arrêté | Shop at ECS Tuning | ||||
| 03 | Clé à six pans creux | 10 | 1 | 07119906036 | arrêté | Shop at ECS Tuning | ||||
| 04 | Cle polygonale | 8-10 | 1 | 71111103081 | $13.52 | arrêté | Shop at ECS Tuning | |||
| 04 | Cle polygonale | 12-13 | 1 | 71111103082 | $13.52 | arrêté | Shop at ECS Tuning | |||
| 04 | Cle polygonale | 17-19 | 1 | 71111103099 | $12.82 | arrêté | Shop at ECS Tuning | |||
| 05 | Cle plate | 10-11 | 1 | 71111103078 | $13.52 | arrêté | Shop at ECS Tuning | |||
| 05 | Cle plate | 12-13 | 1 | 71111103079 | $13.52 | Shop at ECS Tuning | ||||
| 05 | Cle plate | 17-19 | 1 | 71111103080 | $13.52 | Shop at ECS Tuning | ||||
| 06 | Goupille | 1 | 71111103085 | $17.51 | Shop at ECS Tuning | |||||
| 07 | Clé à bougies | SW21 | 1 | 71111179745 | $18.50 | Shop at ECS Tuning | ||||
| 08 | Tournevis | 1 | 71111103190 | $15.47 | Shop at ECS Tuning | |||||
| 09 | Pince universelle | 1 | 71111103092 | $25.24 | arrêté | Shop at ECS Tuning | ||||
| 11 | Pince de pompe à eau | 1 | 71111103091 | $27.46 | Shop at ECS Tuning | |||||
| 12 | Tournevis | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 13 | Vis a tole tête bombee | ST4,2X19 | 4 | 07119904431 | $0.36 | Shop at ECS Tuning | ||||
| 14 | Vis a tole tête bombee | ST4,2X16-Z2 | 7 | 07119907948 | $0.18 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
