Trousse à outils/Cric for BMW 2500-3.3Li 3.0SBav

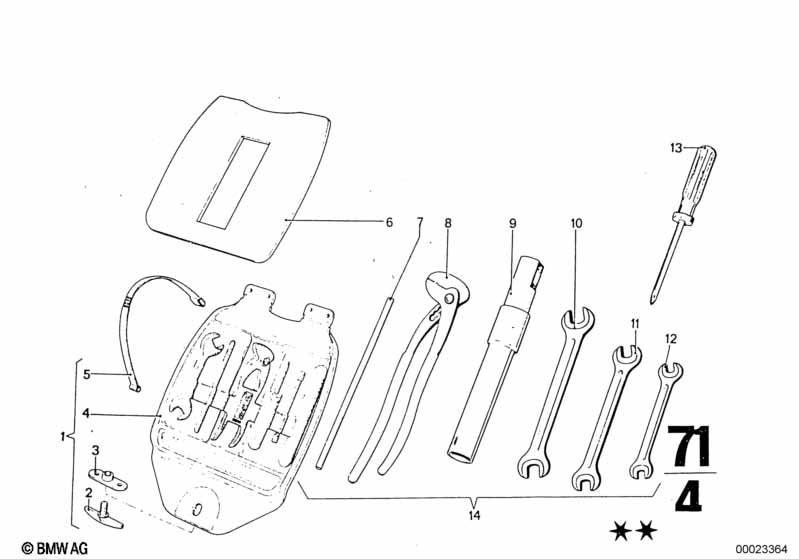

This Trousse à outils/Cric technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0SBav. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Boîte à outils | 1 | 71111111433 | arrêté | Shop at ECS Tuning | |||||
| 01 | Boîte à outils | 1 | 71111112444 | $30.92 | arrêté | Shop at ECS Tuning | ||||
| 02 | Vis bouchon | 1 | 71111117440 | $2.17 | Shop at ECS Tuning | |||||
| 03 | Ergot filete | 1 | 71111110445 | $1.99 | arrêté | Shop at ECS Tuning | ||||
| 04 | Boîte à outils | 1 | 71111112685 | arrêté | Shop at ECS Tuning | |||||
| 05 | Attache de fixation | 1 | 71111113791 | arrêté | Shop at ECS Tuning | |||||
| 06 | Insonorisation | 1 | 71111113973 | $9.02 | arrêté | Shop at ECS Tuning | ||||
| 07 | Goupille | 1 | 71111093774 | $4.44 | Shop at ECS Tuning | |||||
| 08 | Pince de pompe à eau | 1 | 71111179522 | $23.94 | Shop at ECS Tuning | |||||
| 10 | Cle plate | 17-19 | 1 | 71119690008 | $3.74 | arrêté | Shop at ECS Tuning | |||
| 11 | Cle plate | 13-14 | 1 | 71119690009 | $5.78 | Shop at ECS Tuning | ||||
| 12 | Clé à fourche double | 8X10 | 1 | 71111112893 | $5.40 | Shop at ECS Tuning | ||||
| 13 | Tournevis | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 14 | Trousse à outils avec outillage | 1 | 71111128360 | $44.92 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
