Kit di postmont. telaio Performance for BMW 3 Series E46 325Ci (2006)

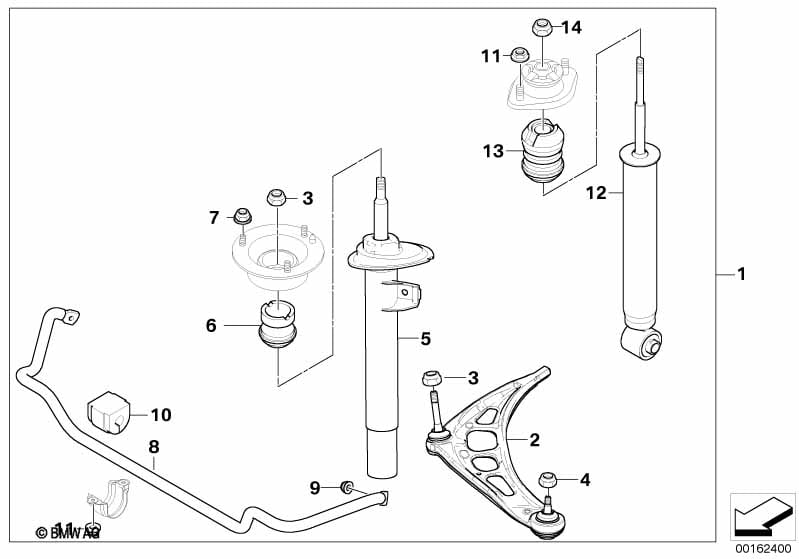

This Kit di postmont. telaio Performance technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kit postmontaggio telaio sportivo | BMW PERFORMANCE | 1 | 09/2001 | 33500429577 | $1070.00 | TERMINATO | Shop at ECS Tuning | ||
| solo in collegamento con Molle elicoidali, vedi tabella molle analogo all'adattamento autotelaio S226A |
||||||||||
| 02 | Kit di rip. braccio trasversale lato sx | VALUE PARTS | 1 | 09/2001 | 31122341297 | Shop at ECS Tuning | ||||
| 02 | Kit di rip. braccio trasversale lato dx | VALUE PARTS | 1 | 09/2001 | 31122341828 | Shop at ECS Tuning | ||||
| 03 | Dado esagonale a bloccaggio automatico | M12X1.5-05 ZNS3 | 2 | 09/2001 | 32216769539 | $0.83 | Shop at ECS Tuning | |||
| 04 | Dado esagonale a bloccaggio automatico | M14X1,5-05 ZNS3 | 4 | 09/2001 | 31106774714 | $1.12 | Shop at ECS Tuning | |||
| 05 | Montante molleggiato anter.sinistra | 1 | 09/2001 | 31312282459 | $284.70 | Shop at ECS Tuning | ||||
| Necessario per la riparazione | ||||||||||
| 05 | Montante molleggiato anteriore destra | 1 | 09/2001 | 31312282460 | $284.70 | Shop at ECS Tuning | ||||
| Necessario per la riparazione | ||||||||||
| -- | Dado esagonale a bloccaggio automatico | M14X1,5-05 ZNS3 | 1 | 09/2001 | 31106774714 | $1.12 | Shop at ECS Tuning | |||
| -- | Vite Esagonale con Rondella | M12X1,5X55-10.9 | 1 | 09/2001 | 31306779487 | $2.17 | Shop at ECS Tuning | |||
| 06 | Kit di rip. ammort. suppl.tubo di prot. | VALUE PARTS | 2 | 09/2001 | 31302290313 | +rest. | Shop at ECS Tuning | |||
| 07 | Dado a colletto a bloccaggio automatico | M8-8 ZNS3 | 6 | 09/2001 | 31316769731 | $0.38 | Shop at ECS Tuning | |||
| 08 | Barra stabilizzatore anteriore | D=23,5MM | 1 | 09/2001 | 31356757168 | $159.52 | Shop at ECS Tuning | |||
| 09 | Dado esagonale con flangia | M10-10 ZNS3 | 2 | 09/2001 | 33306760587 | $0.78 | Shop at ECS Tuning | |||
| 10 | Supporto di gomma p stabilizzatore | D=23,5MM | 2 | 09/2001 | 33556751269 | $18.93 | Shop at ECS Tuning | |||
| Necessario per la riparazione | ||||||||||
| -- | Strum. di montaggio | 250ML | 2 | 09/2001 | 83192405829 | Shop at ECS Tuning | ||||
| 11 | Dado a colletto a bloccaggio automatico | M8-8-ZNS3 | 8 | 09/2001 | 07119904295 | $0.36 | Shop at ECS Tuning | |||
| 11 | Dado a colletto a bloccaggio automatico | M8-10 ZNS3 | 8 | 09/2001 | 07119905374 | Shop at ECS Tuning | ||||
| 12 | Amortizzatore posteriore | 2 | 09/2001 | 33522282461 | $157.59 | Shop at ECS Tuning | ||||
| Necessario per la riparazione | ||||||||||
| -- | Dado esagonale a bloccaggio automatico | M10X1-8 ZNS3 | 2 | 09/2001 | 33526773882 | $1.03 | Shop at ECS Tuning | |||
| -- | Vite esagonale | M12X1,5X60 | 2 | 09/2001 | 07119900402 | $1.64 | Shop at ECS Tuning | |||
| 13 | Kit di rip. ammort. suppl.tubo di prot. | VALUE PARTS | 2 | 09/2001 | 33502290347 | +rest. | Shop at ECS Tuning | |||
| 14 | Dado esagonale a bloccaggio automatico | M10X1-8 ZNS3 | 2 | 09/2001 | 33526773882 | $1.03 | Shop at ECS Tuning | |||
Note
- TERMINATO = Il ricambio è fuori produzione.
- +rest. = possibilità di restituzione della parte originale
