BMW Performance filtro aria for BMW 3 Series E46 325xi (2005)

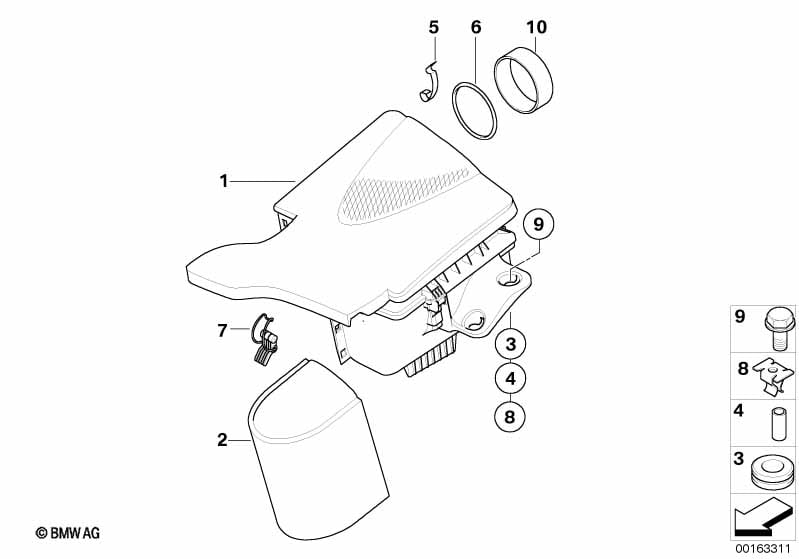

This BMW Performance filtro aria technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attenzione: le istruzioni di montaggio (EBA) non sono contenute nel kit di postmontaggio. Le istruzioni devono essere stampate nella versione aggiornata dall'Aftersales Assistance Portal (ASAP)e consegnate al cliente. |
|||||||||
| 01 | Filtro aria | BMW PERFORMANCE | 1 | 13720432306 | $994.00 | TERMINATO, +rest. | Shop at ECS Tuning | |||
| 02 | Elemento filtro aria | BMW PERFORMANCE | 1 | 13720431649 | $66.50 | TERMINATO, +rest. | Shop at ECS Tuning | |||
| 03 | Bussola in gomma | 2 | 13711702508 | $3.34 | Shop at ECS Tuning | |||||
| 04 | Boccola | 2 | 13711438765 | $0.77 | TERMINATO | Shop at ECS Tuning | ||||
| 05 | Staffa p attacco molla | L=34MM | 2 | 13711707044 | $1.16 | Shop at ECS Tuning | ||||
| 06 | O-Ring | 79X6MM | 1 | 13711720540 | $2.48 | Shop at ECS Tuning | ||||
| 06 | O-Ring | 91X6MM | 1 | 13711731893 | $4.38 | Shop at ECS Tuning | ||||
| 07 | Staffa tenditrice | 5 | 13719071752 | $2.07 | Shop at ECS Tuning | |||||
| 08 | Gabbia prestol | M6 ZNS3 | 2 | 32411095443 | $1.48 | Shop at ECS Tuning | ||||
| 09 | Vite Esagonale con Rondella | M6X25-U2-ZNS3 | 2 | 08/2006 | 07119902911 | $0.65 | TERMINATO | Shop at ECS Tuning | ||
| 09 | Vite Esagonale con Rondella | M6X25-U2 | 2 | 07119905871 | $0.59 | Shop at ECS Tuning | ||||
| 10 | Guarnizione | BMW PERFORMANCE | 2 | 13710432609 | $24.75 | TERMINATO, +rest. | Shop at ECS Tuning | |||
| 10 | Guarnizione | BMW PERFORMANCE | 1 | 13710432610 | $24.75 | TERMINATO, +rest. | Shop at ECS Tuning | |||
Note
- TERMINATO = Il ricambio è fuori produzione.
- +rest. = possibilità di restituzione della parte originale
