Postmontaggio in legno Betulla scuro for BMW 6 Series E64 650i (2007)

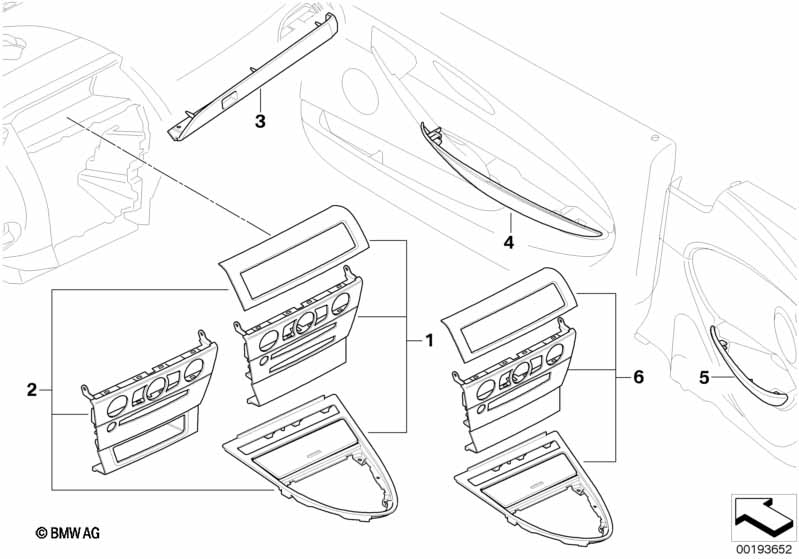

This Postmontaggio in legno Betulla scuro technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Serie di listelli in legno | BIRKE GRAU | 1 | 09/2007 | 51457136217 | $732.02 | TERMINATO, +rest. | Shop at ECS Tuning | ||
| Per veicoli con Assegnazione CCC |
S6VBA=Sì |
|||||||||
| 01 | Serie di listelli in legno | BIRKE GRAU | 1 | 51459177366 | $775.12 | Shop at ECS Tuning | ||||
| 02 | Serie di listelli in legno | BIRKE GRAU | 1 | 09/2007 | 51457136219 | $735.47 | TERMINATO, +rest. | Shop at ECS Tuning | ||
| 03 | Listello decorat.tavola portastrument.d. | BIRKE GRAU | 1 | 51457074008 | $153.97 | TERMINATO | Shop at ECS Tuning | |||
| 04 | Listello decorat. porta anter.sin. | BIRKE GRAU | 1 | 51417116053 | $140.92 | Shop at ECS Tuning | ||||
| 04 | Listello decorat. porta anter.destra | BIRKE GRAU | 1 | 51417116054 | $140.92 | Shop at ECS Tuning | ||||
| 05 | Listello dec. rivestim. later. pos. sin. | BIRKE GRAU | 1 | 51437115483 | $123.73 | +rest. | Shop at ECS Tuning | |||
| 05 | Listello dec. rivestim. later. pos. des. | BIRKE GRAU | 1 | 51437115484 | $123.73 | +rest. | Shop at ECS Tuning | |||
Note
- TERMINATO = Il ricambio è fuori produzione.
- +rest. = possibilità di restituzione della parte originale
