MINI accessori esterni Piano Black for BMW MINI Countryman F60 Cooper

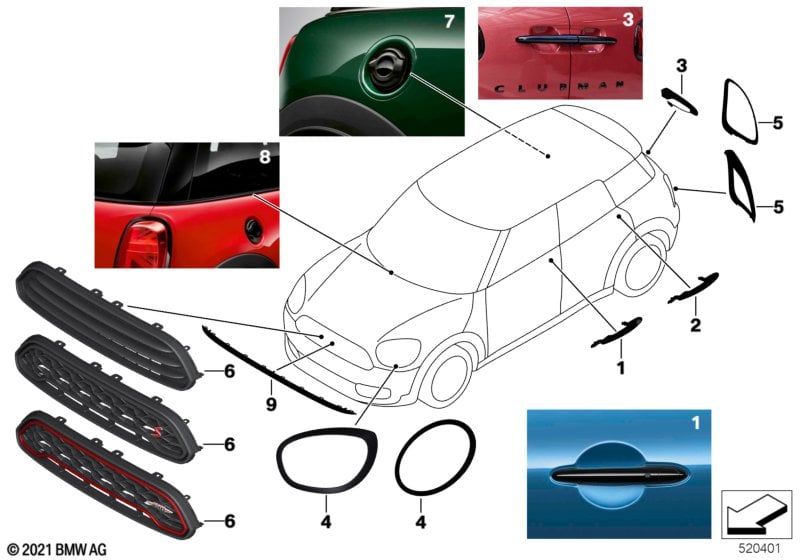

This MINI accessori esterni Piano Black technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Le maniglie esterne delle porte sono montabili per tutti i modelli. In abbinamento agli equipaggiamenti speciali Comfort Access (ES 322) e al pacchetto MINI Excitement (ES 4V9) resta garantita la funzionalità degli equipaggiamenti speciali (ES). Per i modelli senza questi ES le predisposizioni per gli ES restano senza funzionalità. |
|||||||||
| 01 | Türaussengriff vorn rechts | PIANO BLACK | 1 | 51712457410 | TERMINATO | Shop at ECS Tuning | ||||
| 01 | Maniglia esterna porta anteriore sx | PIANO BLACK | 1 | 51712457413 | TERMINATO | Shop at ECS Tuning | ||||
| 02 | Maniglia esterna di porta poster. sin. | PIANO BLACK | 1 | 51712457415 | TERMINATO | Shop at ECS Tuning | ||||
| 02 | Maniglia esterna di porta poster. destra | PIANO BLACK | 1 | 51712457414 | TERMINATO | Shop at ECS Tuning | ||||
| 04 | Anello decor. faro sinistro | PIANO BLACK | 1 | 51712414967 | TERMINATO | Shop at ECS Tuning | ||||
| 04 | Anello decor. faro destro | PIANO BLACK | 1 | 51712414988 | TERMINATO | Shop at ECS Tuning | ||||
| 05 | Anello decorativo gruppi ottici post.sx | PIANO BLACK | 1 | 51712414989 | Shop at ECS Tuning | |||||
| 05 | Anello decorativo gruppi ottici post.dx | PIANO BLACK | 1 | 51712414990 | Shop at ECS Tuning | |||||
| 06 | Griglia ornament. cofano anteriore | PIANO BLACK | 1 | 51712414966 | Shop at ECS Tuning | |||||
Note
- TERMINATO = Il ricambio è fuori produzione.
