Sistema di raffredda.-tubo fless.p.acqua for BMW 3 Series E21 316

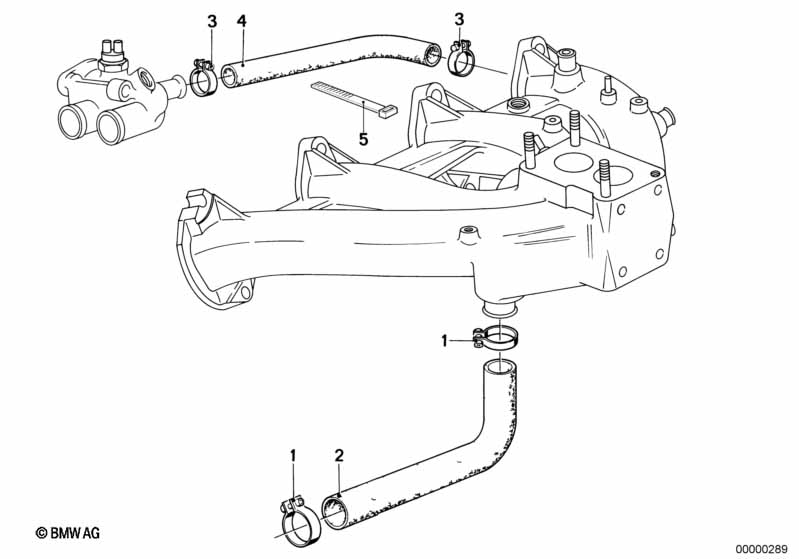

This Sistema di raffredda.-tubo fless.p.acqua technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Collare per tubo flessibile | L28-33 | 2 | 09/1980 | 07129952113 | $0.96 | Shop at ECS Tuning | |||
| 02 | Tubo fless.p.acqua | 1 | 09/1980 | 11531266465 | $15.47 | Shop at ECS Tuning | ||||
| 03 | Collare per tubo flessibile | L18-24 | 2 | 09/1980 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| 04 | Tubo fless.p.acqua | 1 | 09/1980 | 11531266458 | $16.00 | Shop at ECS Tuning | ||||
| 05 | Legacavi | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 316 Sistema di raffredda.-tubo fless.p.acqua?
- This technical diagram illustrates the Sistema di raffredda.-tubo fless.p.acqua within the Motore group for the 3 Series E21 316. It provides a detailed exploded view of the components, identifying key parts such as the Collare per tubo flessibile (Part #07129952113).
- Which models use the hardware listed in this Sistema di raffredda.-tubo fless.p.acqua?
- The hardware and components featured in the Sistema di raffredda.-tubo fless.p.acqua are specific to the 3 Series E21 316. These technical specifications ensure that parts like the Collare per tubo flessibile (07129952113) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sistema di raffredda.-tubo fless.p.acqua assembly?
- Each item in the Sistema di raffredda.-tubo fless.p.acqua corresponds to the numbered list below the illustration. For the 3 Series E21 316, you can identify the Collare per tubo flessibile by locating its position on the schematic, which then links to the official BMW part number 07129952113 for the Motore section.
