Comando a depressione-AGR for BMW 5 Series E12 525

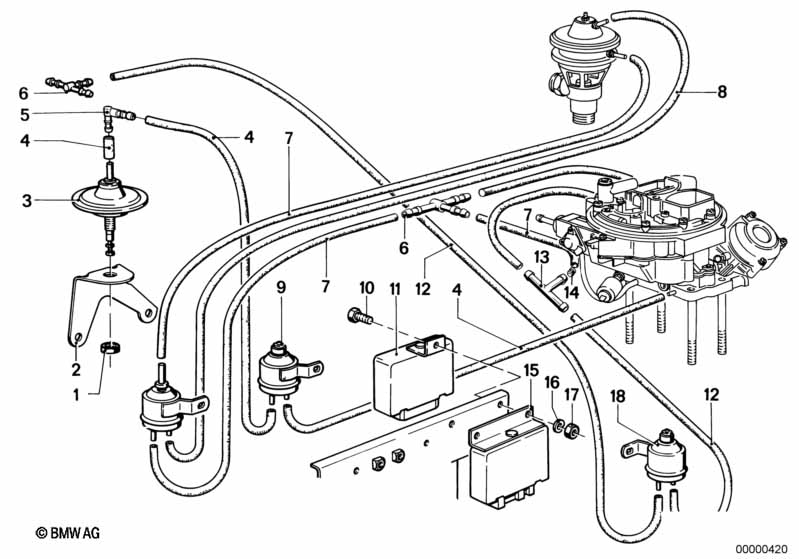

This Comando a depressione-AGR technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Per veicoli con Svezia versioni |
=Sì |
|||||||||
| 01 | Dado esagonale | M12X1 | 1 | 10/1975 | 11512077715 | $0.58 | TERMINATO | Shop at ECS Tuning | ||
| 03 | Scatola di depressione | 1 | 10/1975 | 13211252253 | $89.60 | Shop at ECS Tuning | ||||
| 04 | Tubo fless.a depr.bianco | 3,3X1,8 | X | 10/1975 | 11747797177 | $17.14 | Shop at ECS Tuning | |||
| 05 | Sostegno | 1 | 10/1975 | 22116759728 | $0.79 | Shop at ECS Tuning | ||||
| 06 | Pezzo-T | 4 | 10/1975 | 11731261489 | $0.56 | Shop at ECS Tuning | ||||
| 07 | Tubo fless.a depr.rosso | 3,3X1,8 | X | 10/1975 | 11747797050 | $17.32 | Shop at ECS Tuning | |||
| 08 | Tubo flessib.a depressione blu | 3,3X1,8 | X | 10/1975 | 11747797082 | $17.14 | Shop at ECS Tuning | |||
| 09 | Commutat.ventil.elettr.bianco | 1 | 10/1975 | 11741265860 | $67.10 | TERMINATO | Shop at ECS Tuning | |||
| 10 | Vite esagonale | M5X12-8.8 ZN | 3 | 10/1975 | 07119913231 | $1.42 | Shop at ECS Tuning | |||
| 11 | Relais interrutt.comand.I.funz.d.regine | 1 | 10/1975 | 11641257241 | TERMINATO | Shop at ECS Tuning | ||||
| 12 | Tubo fless.a depr.nero | 3,5X1,8 | X | 10/1975 | 11727545323 | $14.82 | Shop at ECS Tuning | |||
| 13 | Distributore | 1 | 10/1975 | 61661355939 | $1.18 | Shop at ECS Tuning | ||||
| solo in collegamento con | ||||||||||
| -- | Getto | 40 | 1 | 10/1975 | 13111264168 | TERMINATO | Shop at ECS Tuning | |||
| 15 | Interrutt.comand.in funzione del regime | 1 | 10/1975 | 11641252408 | $121.64 | TERMINATO | Shop at ECS Tuning | |||
| 16 | Rosetta elastica | B5 | 3 | 10/1975 | 07119932098 | $0.38 | Shop at ECS Tuning | |||
| 17 | Dado esagonale | M5-8-ZNNIV SI | 2 | 10/1975 | 07119905729 | Shop at ECS Tuning | ||||
| 18 | Commutat.ventil.elettr.nero | 1 | 10/1975 | 11741265859 | $84.16 | TERMINATO | Shop at ECS Tuning | |||
Note
- TERMINATO = Il ricambio è fuori produzione.
