Sistema di raffredda.-tubo fless.p.acqua for BMW 3 Series E36 325i

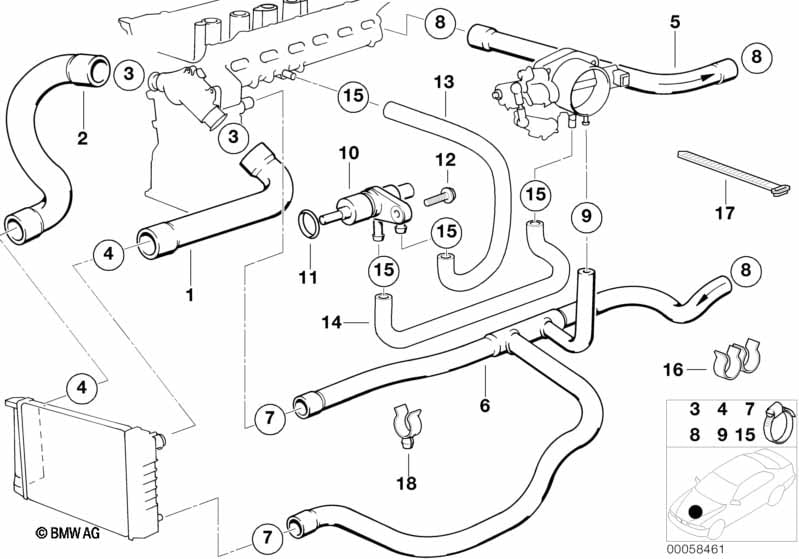

This Sistema di raffredda.-tubo fless.p.acqua technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tubo fless.p.acqua | 1 | 11531720720 | $22.64 | Shop at ECS Tuning | |||||
| 02 | Tubo fless.p.acqua | 1 | 11531730928 | $26.42 | +rest. | Shop at ECS Tuning | ||||
| 03 | Collare per tubo flessibile | L=47-54MM | 2 | 07129952121 | $1.42 | Shop at ECS Tuning | ||||
| 04 | Collare per tubo flessibile | L42-48 | 2 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 05 | Tubo p ammissione motore E valvola acqua | 1 | 64211394293 | $19.95 | Shop at ECS Tuning | |||||
| 06 | Tubo p radiatore E ritorno motore | 1 | 11531738055 | $56.13 | +rest. | Shop at ECS Tuning | ||||
| 07 | Collare per tubo flessibile | L28-33 | 3 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 08 | Collare per tubo flessibile | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 09 | Collare per tubo flessibile | L15-19 | 1 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 10 | Termostato | 1 | 13541730682 | $62.63 | Shop at ECS Tuning | |||||
| 11 | O-Ring | 1 | 13541735380 | $2.48 | Shop at ECS Tuning | |||||
| 12 | Vite Esagonale con Rondella | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Tubo fless.p.acqua | 1 | 13541735173 | $25.37 | Shop at ECS Tuning | |||||
| 14 | Tubo fless.p.acqua | 1 | 13541735174 | $22.55 | Shop at ECS Tuning | |||||
| 15 | Collare per tubo flessibile | L15-18 | 4 | 11151727509 | $1.02 | Shop at ECS Tuning | ||||
| 16 | Supporto tubo flessibile | 1 | 11151730342 | $0.19 | Shop at ECS Tuning | |||||
| 16 | Sostegno p spina di diagnosi | 2 | 11531726298 | $1.19 | Shop at ECS Tuning | |||||
| 17 | Legacavi | L=292MM/B=4,8MM | 3 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 18 | Sostegno p spina di diagnosi | 2 | 11531726298 | $1.19 | Shop at ECS Tuning |
Note
- +rest. = possibilità di restituzione della parte originale
