Comando a depressione for BMW 2500-3.3Li 3.0S

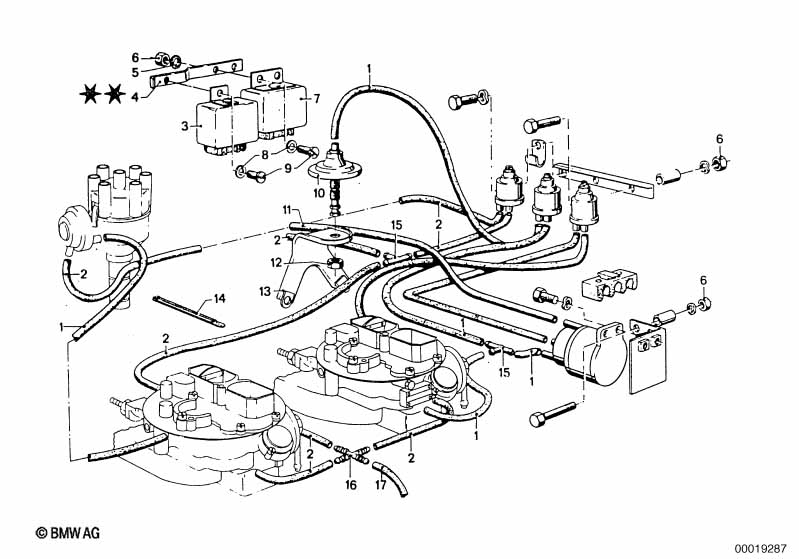

This Comando a depressione technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tubo fless.a depr.bianco | 3,3X1,8 | 5 | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| 02 | Tubo fless.a depr.nero | 3,5X1,8 | 8 | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 03 | Relais interrutt.comand.I.funz.d.regine | 1 | 11641257241 | TERMINATO | Shop at ECS Tuning | |||||
| 04 | Supporto | 1 | 11641257249 | TERMINATO | Shop at ECS Tuning | |||||
| 05 | Rosetta dentata | A5,1 | 3 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Dado esagonale | M5-8-ZNNIV SI | 6 | 07119905729 | Shop at ECS Tuning | |||||
| 07 | Interrutt.comand.in funzione del regime | 1 | 11641252408 | $121.64 | TERMINATO | Shop at ECS Tuning | ||||
| 08 | Rondella | 10X5,3X1-200 HV | 3 | 07119904206 | Shop at ECS Tuning | |||||
| 08 | Piastra d'appoggio | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Vite testa cil. | M5X12-ZN | 3 | 07119907627 | $0.43 | Shop at ECS Tuning | ||||
| 10 | Scatola di depressione | 1 | 13211252253 | $89.60 | Shop at ECS Tuning | |||||
| 11 | Tubo flessib.a depressione blu | 3,3X1,8 | 1 | 11747797082 | $17.14 | Shop at ECS Tuning | ||||
| 12 | Dado esagonale | M12X1 | 1 | 11512077715 | $0.58 | TERMINATO | Shop at ECS Tuning | |||
| 13 | Supporto | 1 | 13211252539 | TERMINATO | Shop at ECS Tuning | |||||
| 14 | Legacavi | L=292MM/B=4,8MM | 2 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 15 | Pezzo-T | 2 | 11731261489 | $0.56 | Shop at ECS Tuning | |||||
| 16 | Distributore | 1 | 11731259188 | TERMINATO | Shop at ECS Tuning | |||||
| 17 | Tubo flessibile carburante | 6X11MM | 1 | 13311272750 | $11.62 | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
