Cdo valvole, catena di distr. cil. 5-8 for BMW 7 Series F02 750Li (2011)

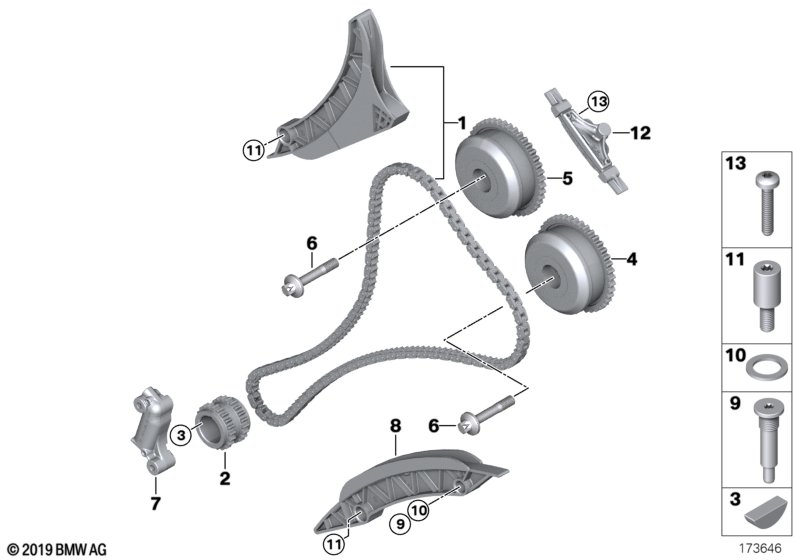

This Cdo valvole, catena di distr. cil. 5-8 technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 750Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Catena di distribuzione con tendicatena | 1 | 03/2025 | 11317567500 | $163.68 | Shop at ECS Tuning | ||||
| 01 | Catena di distribuzione con tendicatena | 1 | 11315B6C1F9 | Shop at ECS Tuning | ||||||
| 02 | Pignone per catena | 1 | 11217571037 | $87.97 | Shop at ECS Tuning | |||||
| 03 | Molla per disco | 4X5 | 1 | 07119951453 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Regolaz.cpl. p albero a camme di aspiraz | 1 | 11367598001 | $319.11 | Shop at ECS Tuning | |||||
| 05 | Regolaz.cpl. p albero a camme di scarico | 1 | 11367598002 | $319.11 | Shop at ECS Tuning | |||||
| 06 | Vite centrale | M10X1X80 | 2 | 11367564346 | $2.55 | Shop at ECS Tuning | ||||
| 07 | Tendicatena | 1 | 11317557741 | $63.43 | Shop at ECS Tuning | |||||
| 08 | Guida | 1 | 11317574397 | $32.22 | Shop at ECS Tuning | |||||
| 09 | Vite d'articolazione | 1 | 11317582925 | $6.05 | Shop at ECS Tuning | |||||
| 10 | Anello di tenuta | A14X21 | 1 | 11317550461 | $1.19 | Shop at ECS Tuning | ||||
| 11 | Vite cuscinetto autobloccante | 2 | 11317584402 | $6.05 | Shop at ECS Tuning | |||||
| 12 | Barra di scorrimento | 1 | 11317565242 | $42.62 | Shop at ECS Tuning | |||||
| 13 | Vite ISA | M7X45-8.8 | 2 | 11127570995 | $1.03 | Shop at ECS Tuning |
