Manovel-albero a gomi.con gusci d.cusci. for BMW MINI Cabrio F57 JCW (2019)

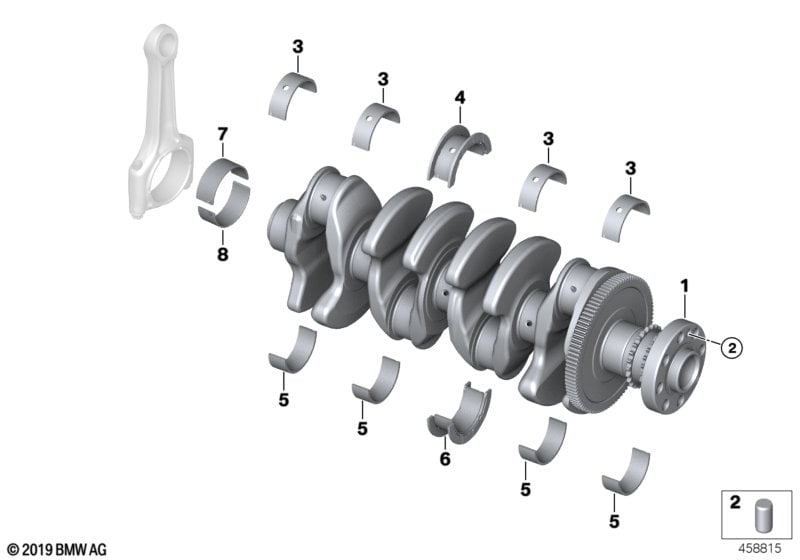

This Manovel-albero a gomi.con gusci d.cusci. technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Usare short block! | ||||||||||
| 01 | Parte non disponibile separatamente | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| solo in collegamento con | ||||||||||
| -- | Ruota intermedia | 1 | 11275A29F49 | Shop at ECS Tuning | ||||||
| -- | Dado esagonale | M12X1,5 | 1 | 11277797952 | Shop at ECS Tuning | |||||
| -- | Ruota dentata | 1 | 11278471860 | Shop at ECS Tuning | ||||||
| -- | Ruota dentata | 1 | 11278471861 | Shop at ECS Tuning | ||||||
| -- | Albero di compensazione | 1 | 11278487233 | Shop at ECS Tuning | ||||||
| -- | Vite ASA con rondella | 1 | 11278508003 | Shop at ECS Tuning | ||||||
| 02 | Spina di registr. | 8X14 | 1 | 11217797978 | Shop at ECS Tuning | |||||
| 03 | Semicuscinetto 1 | 50,00MM | 4 | 11219469425 | Shop at ECS Tuning | |||||
| 03 | Semicuscinetto 2 | 50,00MM | 4 | 11219469426 | Shop at ECS Tuning | |||||
| 03 | Semicuscinetto 3 | 50,00MM | 4 | 11219469427 | Shop at ECS Tuning | |||||
| 04 | Semicuscinetto a filo superiore 1 | 50,00MM | 1 | 11219469433 | Shop at ECS Tuning | |||||
| 04 | Semicuscinetto a filo superiore 2 | 50,00MM | 1 | 11219469434 | Shop at ECS Tuning | |||||
| 04 | Semicuscinetto a filo superiore 3 | 50,00MM | 1 | 11219469435 | Shop at ECS Tuning | |||||
| 05 | Semicuscinetto 1 | 50,00MM | 4 | 11219469681 | Shop at ECS Tuning | |||||
| 05 | Semicuscinetto 2 | 50,00MM | 4 | 11219469682 | Shop at ECS Tuning | |||||
| 05 | Semicuscinetto 3 | 50,00MM | 4 | 11219469683 | Shop at ECS Tuning | |||||
| 06 | Semicuscinetto a filo inferiore 1 | 50,00MM | 1 | 11219470156 | Shop at ECS Tuning | |||||
| 06 | Semicuscinetto a filo inferiore 2 | 50,00MM | 1 | 11219470157 | Shop at ECS Tuning | |||||
| 06 | Semicuscinetto a filo inferiore 3 | 50,00MM | 1 | 11219470158 | Shop at ECS Tuning | |||||
| 07 | Semicuscinetto | 50,00MM(0) | 4 | 04/2024 | 11247620969 | Shop at ECS Tuning | ||||
| 07 | Semicuscinetto | 50,00MM(0) | 4 | 11241021377 | Shop at ECS Tuning | |||||
| 08 | Semicuscinetto | 50,00MM(0) | 4 | 11247620970 | Shop at ECS Tuning | |||||
