Alimentazione dell'olio turbocompressore for BMW 5 Series G31 Touring 525d (2018)

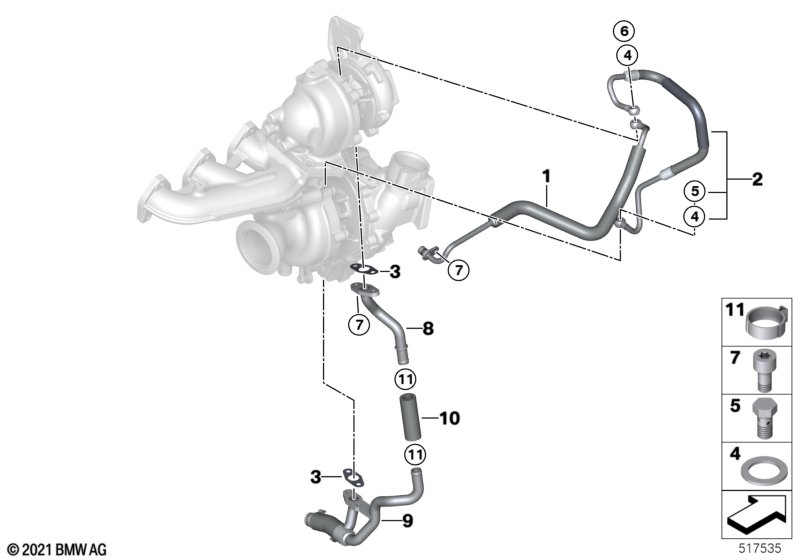

This Alimentazione dell'olio turbocompressore technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tubo olio premandata ad alta compress. | 1 | 11428513622 | Shop at ECS Tuning | ||||||
| 02 | Tubo olio premandata a bassa compress. | 1 | 11428513624 | Shop at ECS Tuning | ||||||
| 03 | Guarnizione freno senza amianto | 2 | 11427925922 | Shop at ECS Tuning | ||||||
| 04 | Anello di tenuta | 5 | 11427100363 | NoS | Shop at ECS Tuning | |||||
| 05 | Vite cava | M10X1-ZNNIV SI | 1 | 07119907291 | Shop at ECS Tuning | |||||
| 06 | Vite cava | M10X1X30 | 1 | 11427792255 | Shop at ECS Tuning | |||||
| 07 | Vite ISA | M6X12-8.8-ZNNIV | 6 | 07129905867 | Shop at ECS Tuning | |||||
| 08 | Tubatura oilo ritorno | 1 | 11428513623 | Shop at ECS Tuning | ||||||
| 09 | Tubatura oilo ritorno | 1 | 11428513625 | Shop at ECS Tuning | ||||||
| 10 | Tubo flessibile | 1 | 11422249206 | Shop at ECS Tuning | ||||||
| 11 | Fascetta | 2 | 11428580697 | Shop at ECS Tuning |
