Testata/Pezzi di montaggio for BMW MINI Cabrio F57 JCW (2019)

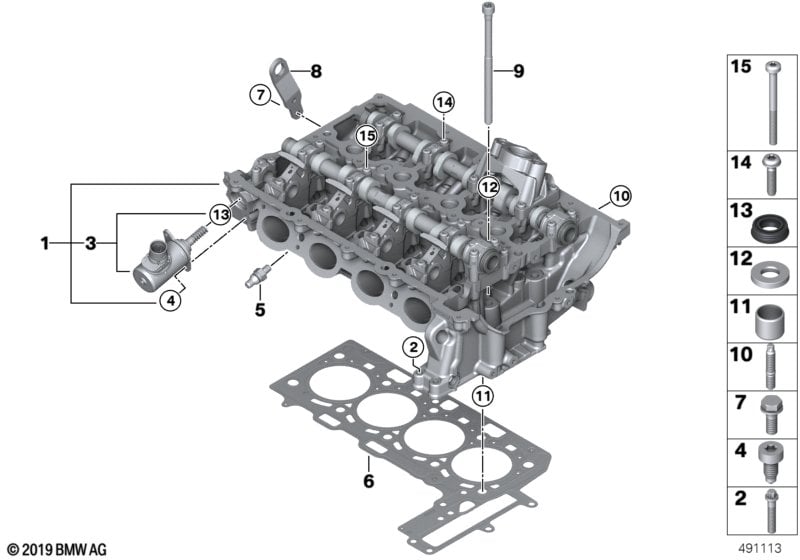

This Testata/Pezzi di montaggio technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Testata con comando valvole | 1 | 01/2017 | 11128482777 | Shop at ECS Tuning | |||||
| solo in collegamento con | ||||||||||
| -- | Perno cilindrico | 4X16MM | 2 | 01/2017 | 07119942082 | Shop at ECS Tuning | ||||
| 02 | ASA-Vite | M8X40 | 5 | 07119907475 | Shop at ECS Tuning | |||||
| 03 | Motorino | 1 | 11378652738 | Shop at ECS Tuning | ||||||
| 04 | Vite ISA | M6X16-8.8-ZNNIV | 2 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Bocchetta di sfiato con O-Ring | 1 | 11128626622 | Shop at ECS Tuning | ||||||
| 06 | Guarnizione testata cili. senza amiante | 0,70MM | 1 | 07/2015 | 11128654272 | Shop at ECS Tuning | ||||
| 06 | Guarnizione testata cili. senza amiante | 1,00MM (+0,3) | 1 | 07/2015 | 11128654273 | Shop at ECS Tuning | ||||
| 07 | Vite Esagonale con Rondella | M8X22 | 2 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Occhiello | 1 | 11127638711 | Shop at ECS Tuning | ||||||
| 09 | Vite della testata | M11X188 | 10 | 11128644674 | Shop at ECS Tuning | |||||
| 10 | Vite prigioniera ASA | M7X47-10.9-PHR | 10 | 11127647711 | Shop at ECS Tuning | |||||
| 11 | Boccola d.aggiustaggio | D=14,5MM | 2 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
| 12 | Piastra d'appoggio | 10 | 11127583138 | $6.05 | Shop at ECS Tuning | |||||
| 13 | Anello di tenuta | 1 | 11378662525 | Shop at ECS Tuning | ||||||
| Attenzione! Seguire le istruzioni per le riparazioni.Procedura di avvitamento modificata. |
||||||||||
| 14 | Vite a testa piana | M6X35-8.8 | 22 | 07119907886 | Shop at ECS Tuning | |||||
| 14 | Vite a testa piana | M6X35-10.9 | 18 | 07119909683 | Shop at ECS Tuning | |||||
| 15 | Vite a testa piana | M6X65-8.8 | 5 | 07119907887 | Shop at ECS Tuning | |||||
| 15 | Vite a testa piana | M6X65-10.9 | 9 | 07149844207 | Shop at ECS Tuning | |||||
