Testata pezzi montabili for BMW XM G09 XM (2025)

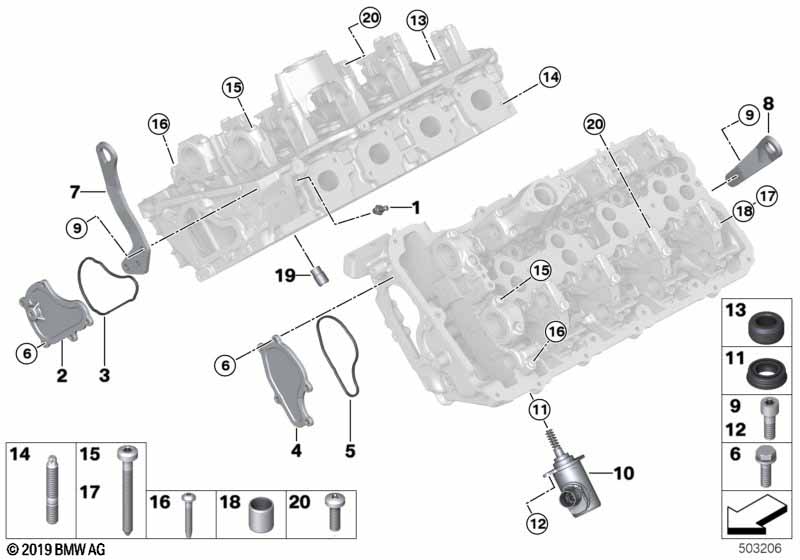

This Testata pezzi montabili technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Raccordo d'attacco microincapsulato | M8X1 | 2 | 11128626647 | Shop at ECS Tuning | |||||
| 02 | Coperchio | ZYL. 1-4 | 1 | 11127608405 | Shop at ECS Tuning | |||||
| 03 | Profilo guarnizione | ZYL. 1-4 | 1 | 11127605211 | Shop at ECS Tuning | |||||
| 04 | Coperchio | ZYL. 5-8 | 1 | 11127608406 | Shop at ECS Tuning | |||||
| 05 | Profilo guarnizione | ZYL. 5-8 | 1 | 11127605212 | Shop at ECS Tuning | |||||
| 06 | Vite Esagonale con Rondella | M6X20 | 10 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 07 | Biscottino testata cilindri | ZYL. 1-4 | 1 | 07/2023 | 11121029026 | NoS | Shop at ECS Tuning | |||
| 08 | Biscottino | ZYL. 5-8 | 1 | 11127603414 | Shop at ECS Tuning | |||||
| 09 | Vite ISA | M8X22-ZNNIV SI | 4 | 07129905769 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Motorino | 2 | 11377631574 | Shop at ECS Tuning | ||||||
| 11 | Anello di tenuta | 1 | 11378662525 | Shop at ECS Tuning | ||||||
| 12 | Vite ISA | M6X16-8.8-ZNNIV | 2 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 13 | Anello di tenuta | ZYL. 1-4 | 1 | 11127618841 | Shop at ECS Tuning | |||||
| 14 | Non dispon. presso BMW | 16 | 84210300311 | TERMINATO | Shop at ECS Tuning | |||||
| 15 | Vite d'aggiustaggio | M6X75 | 4 | 11127603917 | Shop at ECS Tuning | |||||
| 16 | Vite ISA | M6X40-8.8 | 16 | 11127603406 | Shop at ECS Tuning | |||||
| 17 | Vite ISA | M6X67-8.8 | 8 | 11127603407 | Shop at ECS Tuning | |||||
| 18 | Boccola d.aggiustaggio | D=7,5MM | 36 | 11127606504 | Shop at ECS Tuning | |||||
| 19 | Valvola di non ritorno | 2 | 11128642383 | Shop at ECS Tuning | ||||||
| 20 | Vite a testa piana | M6X31 8.8 DK12 | 16 | 11127605351 | Shop at ECS Tuning |
Note
- NoS = No Stock (Componente non pres. nel magazzino cent.)
- TERMINATO = Il ricambio è fuori produzione.
