Blocco cilindri for BMW 3 Series E46 323i (2000)

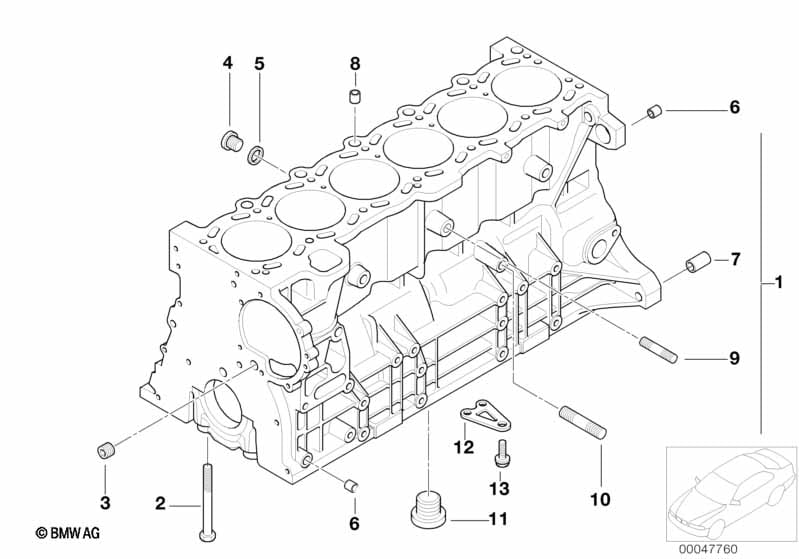

This Blocco cilindri technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Blocco cilindri con pistoni | 1 | 01/2000 | 11117503561 | $3507.50 | Shop at ECS Tuning | ||||
| Necessario per la riparazione | ||||||||||
| -- | Primer Loctite 171000 | 4ML | 1 | 01/2000 | 83197515683 | $11.90 | Shop at ECS Tuning | |||
| 02 | Vite esagonale | M10X92 | 14 | 11111740345 | $1.53 | Shop at ECS Tuning | ||||
| 03 | Tappo a vite | M12X1,5 | 2 | 11111703878 | $3.68 | Shop at ECS Tuning | ||||
| 04 | Tappo a vite | M14X1,5-ZNNIV | 1 | 07119904539 | $2.56 | Shop at ECS Tuning | ||||
| 05 | Anello di tenuta | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Boccola d.aggiustaggio | D=10,5MM | 6 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 07 | Boccola d.aggiustaggio | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 08 | Boccola d.aggiustaggio | D=13,5MM | 2 | 11121726243 | $1.62 | Shop at ECS Tuning | ||||
| 09 | Vite prigioniera | M8X35-8.8 ZN | 1 | 07129908132 | $0.71 | Shop at ECS Tuning | ||||
| 10 | Vite prigioniera | M10X40 | 1 | 11621716870 | $6.17 | Shop at ECS Tuning | ||||
| 11 | Tappo a vite | M24X1.5 | 1 | 11111703836 | $5.42 | Shop at ECS Tuning | ||||
| 12 | Lamiera di appoggio | 8 | 01/2000 | 11111724989 | $1.17 | Shop at ECS Tuning | ||||
| 13 | Vite Esagonale con Rondella | M8X22 | 16 | 01/2000 | 07119905739 | $0.62 | Shop at ECS Tuning | |||
